产品详情
| 产品料号 | CEN989012R10 | |
| 额定负荷 | DC10V 1mA | |
| 接触阻抗 | 5ΩMax | |
| 绝缘阻抗 | 50MΩMin DC250V | |
| 耐电压 | AC50V(50-60HZ)for1Minute | |
| 电气寿命 | 300，000Cycles &800，000Cycles（Load） | |
| 脉冲数 | 12Plus/360° | |
| 扭矩 | 15-30gf.cm | |
| 制动数 | 24 | |
| 机械寿命 | 300，000Cycles &800，000Cycles（Without Load） | |
| 使用温度 | -25℃+80℃ | |
| 耐候性能 | ||
| 耐寒性 | -20℃ | 96H |
| 耐热性 | 80℃ | 96H |
| 耐湿性 | 60℃±2℃90~95%RH | 48H |

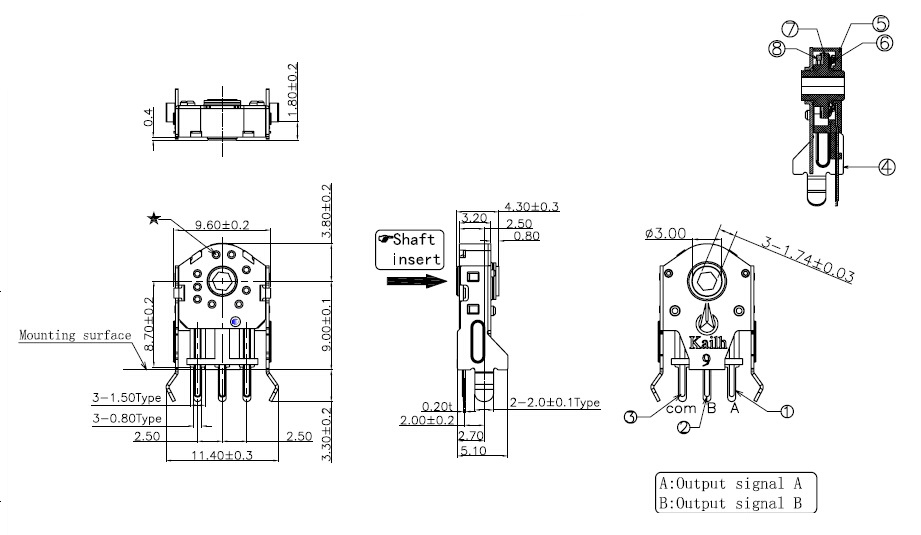

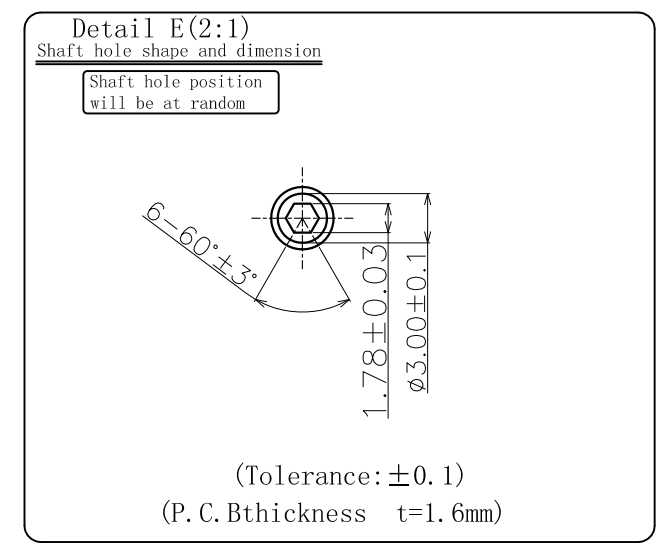

外形图
电路图
| 包装规格 | ||
| 包装数(PCS) | 1盒 | 1000PCS |
| 1箱 | 10000PCS | |
| 波峰自动焊接条件 | ||
| 项目 | 预热温度 | 100±10℃ |
| 预热时间 | 60S(max.) | |
| 焊接温度 | 260±5℃ | |
| 焊接时间 | 5±1S | |
| 手工焊接条件 | ||
| 焊接温度 | 300℃±10℃ | |
| 焊接时间 | 3+1/0S | |
| 烙铁功率 | 60W(max.) | |
| 注意事项： |
| 1.本产品目录中产品的颜色与实物的颜色有所差异 |
| 2.请使用1.6mm板厚的印刷电路板 |
| 3.请以最小订购单位的N(整数）倍来订货 |
| 4.汽车用时，请进行确认后使用 |
产品一览
| 产品编号 | 图片 | 轴心高度 | 扭矩 | 孔径 | 寿命 | 规格书 | 备注 |
| CEN981412R05 |  |
14.00mm | 10-25gf.cm | 1.76mm | 300,000 Cycles |  |
. |
| CEN981112R25 |  |
11.00mm | 00-15gf.cm | 1.74mm | 300,000 Cycles | |
. |
| CEN981012R24 |  |
10.00mm | 20-40gf.cm | 1.74mm | 800,000 Cycles | |
. |
| CEN989012R10 | |
9.00mm | 15-30gf.cm | 1.78mm | 300,000 Cycles | |
. |
| CEN988012R21 |  |
8.00mm | 10-20gf.cm | 1.74mm | 300,000 Cycles | |
. |
| CEN987012R03 | |
7.00mm | 15-30gf.cm | 1.76mm | 300,000 Cycles | |
. |
| CEN981012R01 |  |
10.00mm | 15-30gf.cm | 1.76mm | 300,000 Cycles | |
. |
| CEN981012R02 |  |
10.00mm | 15-30gf.cm | 1.74mm | 200,000 Cycles | |
. |
| CEN981012R05 |  |
10.00mm | 15-30gf.cm | 1.74mm | 300,000 Cycles | |
|
| CEN981012R08 |  |
10.00mm | 20-40gf.cm | 1.74mm | 200,000 Cycles | |
. |
| CEN985512R14 |  |
5.50mm | 15-30gf.cm | 1.74mm | 200,000 Cycles | |
. |
| CEN985012R12 |  |
5.00mm | 15-30gf.cm | 2.00mm | 800,000 Cycles | |
. |
| CEN981112R05 |  |
11.00mm | 15-30gf.cm | 1.74mm | 300,000 Cycles | |
. |
