产品详情
产品料号 | CEN985512R14 | |
额定负荷 | DC5V 1mA | |
接触阻抗 | 5ΩMax | |
绝缘阻抗 | 50MΩMin DC50V | |
耐电压 | AC50V(50-60HZ)for1Minute | |
电气寿命 | 200,000 Cycles | |
脉冲数 | 12Plus/360° | |
扭矩 | 15-30gf.cm | |
制动数 | 24 | |
机械寿命 | 200,000Cycles | |
使用温度 | -25℃-+85℃ | |
耐候性能 | ||
耐寒性 | -25 ± 2 ℃ | 96H |
耐热性 | 85 ± 2℃ | 96H |
耐湿性 | 40℃±2℃ | 48H,90~95%RH |

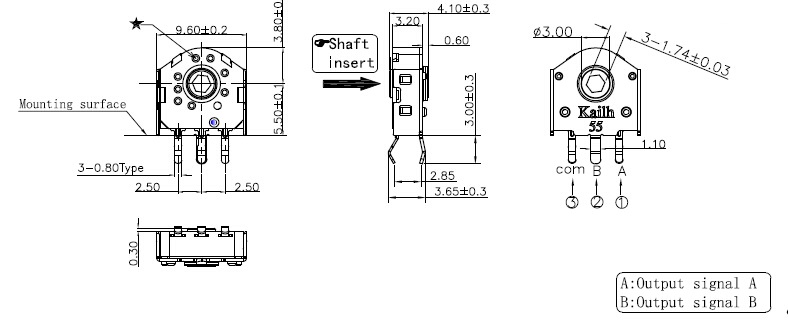

外形图
电路图
包装规格 | ||
包装数(PCS) | 1盒 | 1000PCS |
1箱 | 10000PCS | |
波峰自动焊接条件 | ||
项目 | 预热温度 | 100 ℃ |
预热时间 | 60S(max.) | |
焊接温度 | 260±5℃ | |
焊接时间 | 5±1S | |
手工焊接条件 | ||
焊接温度 | 360℃±10℃ | |
焊接时间 | 3 S | |
烙铁功率 | 60W(max.) |
注意事项: |
1.本产品目录中产品的颜色与实物的颜色有所差异 |
2.请使用1.6mm板厚的印刷电路板 |
3.请以最小订购单位的N(整数)倍来订货 |
4.汽车用时,请进行确认后使用 |
产品一览
产品编号 | 图片 | 轴心高度 | 扭矩 | 孔径 | 寿命 | 规格书 | 备注 |
CEN981412R05 | 14.00mm | 10-25gf.cm | 1.76mm | 300,000 Cycles | . | ||
CEN981112R25 | 11.00mm | 00-15gf.cm | 1.74mm | 300,000 Cycles | . | ||
CEN981012R24 | 10.00mm | 20-40gf.cm | 1.74mm | 800,000 Cycles | . | ||
CEN989012R10 | 9.00mm | 15-30gf.cm | 1.78mm | 300,000 Cycles | . | ||
CEN988012R21 | 8.00mm | 10-20gf.cm | 1.74mm | 300,000 Cycles | . | ||
CEN987012R03 | 7.00mm | 15-30gf.cm | 1.76mm | 300,000 Cycles | . | ||
CEN981012R01 | 10.00mm | 15-30gf.cm | 1.76mm | 300,000 Cycles | . | ||
CEN981012R02 | 10.00mm | 15-30gf.cm | 1.74mm | 200,000 Cycles | . | ||
CEN981012R05 | 10.00mm | 15-30gf.cm | 1.74mm | 300,000 Cycles | |||
CEN981012R08 | 10.00mm | 20-40gf.cm | 1.74mm | 200,000 Cycles | . | ||
CEN985512R14 | 5.50mm | 15-30gf.cm | 1.74mm | 200,000 Cycles | . | ||
CEN985012R12 | 5.00mm | 15-30gf.cm | 2.00mm | 800,000 Cycles | . | ||
CEN981112R05 | 11.00mm | 15-30gf.cm | 1.74mm | 300,000 Cycles | . |
