EN65xx series

P/N CEN652812A01 Rating DC5V 1mA Cotact resistance 5Max Insulation resistance 50MMin DC50V withstanding voltage AC50V(50-60HZ)for1Minute Electrical life 100,000Cycles (Load) Pulse 12Plus/360 Torque force 10-25gf.cm Brake number 12 Mec

CEN652812A01

CEN652812A01

Applications:

Product Details

P/N CEN652812A01
Rating DC5V 1mA
Cotact resistance 5ΩMax
Insulation resistance 50MΩMin DC50V
withstanding voltage AC50V(50-60HZ)for1Minute
Electrical life 100,000Cycles (Load)
Pulse 12Plus/360°
Torque force 10-25gf.cm
Brake number 12
Mechanical life 100,000Cycles(Without Load)
Operating temperature -25℃+80℃
Weather resistance
low temperature resistance -20℃ 96H
heat resisting property 80℃ 96H
Moisture resistance 60℃±2℃90~95%RH 96H

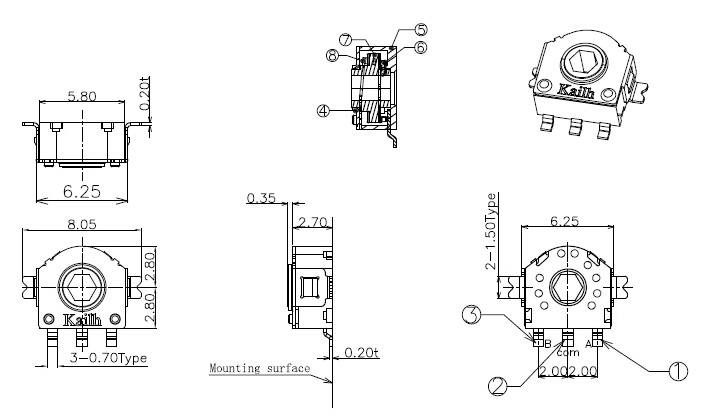

Outline size

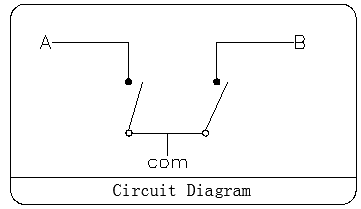

Circuit




Package
Quantity(PCS) 1 bag 1000PCS
  1CTN 10000PCS
Wave peak automatic welding condition
Item preheat temperature 100±10℃
preheating time 60S(max.)
welding temperature 260±5℃
welding time 5±1S
Manual welding condition
  welding temperature 300℃±10℃
  welding time 3+1/0S
  Soldering iron power 60W(max.)
Attention:
1.the product color in the catalogue is differ from the material object
2.Please use a 1.6mm board thickness of the printed circuit board
3.Please order with the n (integer) times of the MOQ
4.Please check with me when you use it in auto

Product overview
Product code Picture Axis height Torque Aperture Life PDF Remarks
CEN652812W02 CEN652812W02 Welded 0-15gf.cm 1.73mm 100,000Cycles PDF
CEN652812R01 CEN652812R01 2.80mm 10-25gf.cm 1.73mm 100,000Cycles PDF
CEN652812A01 CEN652812A01 2.80mm 10-25gf.cm 1.73mm 100,000Cycles PDF -
CEN654512R01 CEN654512R01 4.50mm 10-25gf.cm 1.73mm 100,000Cycles PDF
CEN652812A02 CEN652812A02 2.80mm 10-25gf.cm 1.73mm 100,000 Cycles PDF
CEN652812W06 CEN652812W06 - 10-15gf.cm - 100,000 Cycles PDF
CEN652812R06 CEN652812R06 2.80mm 10-25gf.cm 1.73mm 100,000 Cycles PDF
CEN654512S01 CEN654512S01 4.50mm 10-25gf.cm 1.73mm 100,000 Cycles PDF -
CEN652812R11 CEN652812R11 - 10-25gf.cm - 100,000 Cycles PDF
