CEN808012W39

Used:



  • Details
    P/N CEN808012W39
    Rating DC5V 1mA
    Cotact resistance 5ΩMax
    Insulation resistance 50MΩMin DC50V
    withstanding voltage AC50V(50-60HZ)for1Minute
    Electrical life 200,000Cycles (Load)
    Pulse 12Plus/360°
    Torque force 15-30gf.cm
    Brake number 24
    Mechanical life 200,000Cycles(Without Load)
    Operating temperature -25℃+80℃
    Weather resistance
    low temperature resistance -20℃ 96H
    heat resisting property 80℃ 96H
    Moisture resistance 60℃±2℃90~95%RH 96H

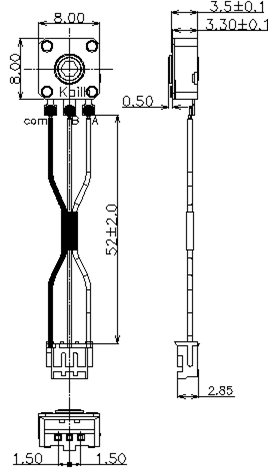

    Outline size


    Circuit




    Package
    Quantity(PCS) 1 bag 1000PCS
      1CTN 10000PCS
    Wave peak automatic welding condition
    Item preheat temperature 100±10℃
    preheating time 60S(max.)
    welding temperature 260±5℃
    welding time 5±1S
    Manual welding condition
      welding temperature 300℃±10℃
      welding time 3+1/0S
      Soldering iron power 60W(max.)
    Attention:
    1.the product color in the catalogue is differ from the material object
    2.Please order with the n (integer) times of the MOQ
    3.Please check with me when you use it in auto
