EN98 series

P/N CEN987012R03 Rating DC5V 1mA Cotact resistance 5Max Insulation resistance 50MMin DC50V withstanding voltage AC50V(50-60HZ)for1Minute Electrical life 300,000Cycles (Load) Pulse 12Plus/360 Torque force 15-30gf.cm Brake number 24 Mec

CEN981012R24

CEN981012R24

Applications:

Product Details

P/N CEN981012R24
Rating DC10V 1mA
Cotact resistance 5ΩMax
Insulation resistance 50MΩMin DC250V
withstanding voltage AC50V(50-60HZ)for1Minute
Electrical life 300,000Cycles &800,000Cycles(Load)
Pulse 12Plus/360°
Torque force 20-40gf.cm
Brake number 24
Mechanical life 300,000Cycles &800,000Cycles(Load)
Operating temperature -25℃+80℃
Weather resistance
low temperature resistance -20℃ 96H
heat resisting property 80℃ 96H
Moisture resistance 60℃±2℃90~95%RH 96H

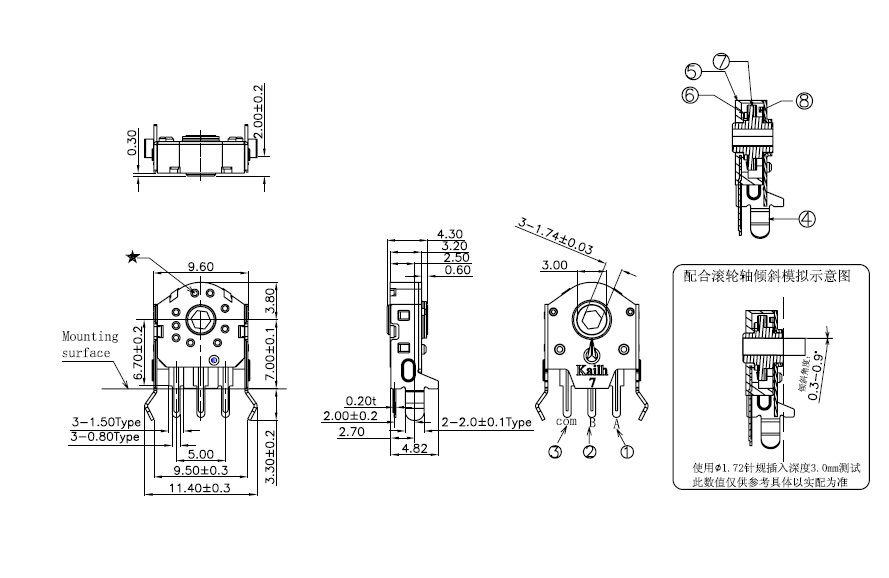

Outline size


Circuit




Package
Quantity(PCS) 1 bag 1000PCS
  1CTN 10000PCS
Wave peak automatic welding condition
Item preheat temperature 100±10℃
preheating time 60S(max.)
welding temperature 260±5℃
welding time 5±1S
Manual welding condition
  welding temperature 300℃±10℃
  welding time 3+1/0S
  Soldering iron power 60W(max.)
Attention:
1.the product color in the catalogue is differ from the material object
2.Please use a 1.6mm board thickness of the printed circuit board
3.Please order with the n (integer) times of the MOQ
4.Please check with me when you use it in auto

Product overview
Product code Picture Axis height Torque Aperture Life PDF Remarks
CEN981212R22 CEN981212R22 12.0mm 10-25gf.cm 1.74mm 800,000Cycles PDF
CEN988012R21 CEN988012R21 8.00mm 10-20gf.cm 1.74mm 300,000 Cycles PDF
CEN981312R34 CEN981312R34 13.00mm 20-40gf.cm 1.72mm 300,000 Cycles PDF
CEN981112R25 CEN981112R25 11.00mm 0-15gf.cm 1.74mm 300,000 Cycles PDF
CEN981012R24 CEN981012R24 10.00mm 20-40gf.cm 1.74mm 800,000 Cycles PDF
CEN989012R10 CEN989012R10 9.00mm 15-30gf.cm 1.78mm 300,000 Cycles PDF
