Product Details
| P/N | CMJP161219D04 | |
| Total resistance | 50K | |
| Impedance characteristic type | "B"linetype | |
| Partial pressure error | 40%-60% | |
| contact noise | 300mV MAX | |
| Mechanical Angle | Maximum use of 50 degrees | |
| operating force | 120±50gf | |
| Operating Temperature Range | -10℃~70℃ | |
| Rating | DC5V 0.0125W | |
| electric property | Insulation Resistance | 100MΩ(min) DC250v |
| withstand voltage | 250VAC for 1 minute | |
| mechanical property | Rotated form of rocker | circumference wheel |
| Push and pull strength of rocker | 5kg keeps 3s | |
| lasting quality | mechanical life | 2,000,000cycles |
| weather resistance | Insulation Resistance | -30℃ 96H |
| Heat Resistance | 70℃ 96H | |
outside view

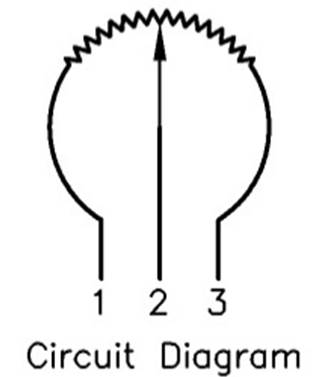

Circuit
| Package | ||
| Quantity(PCS) | 1bag | 50 |
| 1CTN | 1500 | |
| Wave peak automatic welding condition | ||
| Item | preheat temperature | 100±10℃ |
| preheating time | 60S (max.) | |
| welding temperature | 260±5℃ | |
| welding time | 5±1S | |
| Manual welding condition | ||
| welding temperature | 300±10℃ | |
| welding time | 3+1/0S | |
| Soldering iron power | 60W (max.) | |
| 1.Please consider cleaning touch switch on negotiation |
| 2.Please do not immerse the flux from the touch switch |
| 3.Please do not apply the flux in front of the switch terminal and the parts of the PCB |
| 4.When the second welding is carried out, the switch should be resumed to normal temperature |
| 5.Please use the flux of more than 0.8 of the flux |
| Attention： |
| 1.the product color in the catalogue is differ from the material object |
| 2.Please use the thickness 1.6mm PCB |
| 3.Please order with the n (integer) times of the MOQ |
| 4.Please check with me when you use it in auto |
