Product Details
| product code | CLA121101D15 | |
| Rating | DC12V 50mA | |
| Cotact resistance | 100mΩMax | |
| Insulation resistance | 50MΩMin DC250V | |
| withstanding voltage | AC250V(50-60HZ)for1Minute | |
| Electrical life | 500，000Cycles （Load） | |
| Mechanical life | 500，000Cycles （Without Load） | |
| Operation force | 350±50gf | |
| Travel | 0.8±0.15mm | |
| Operating temperature | -25℃+80℃ | |
| Operation type | momentary | |
| Weather resistance | ||
| low temperature resistance | -20℃ | 96H |

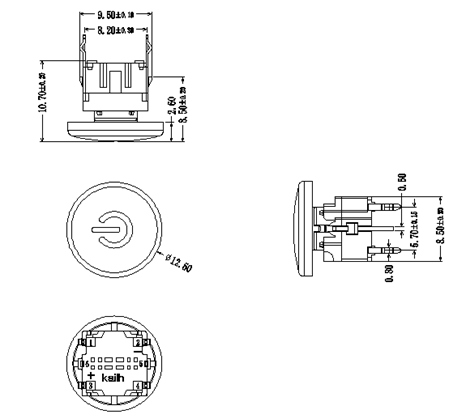

Outline size

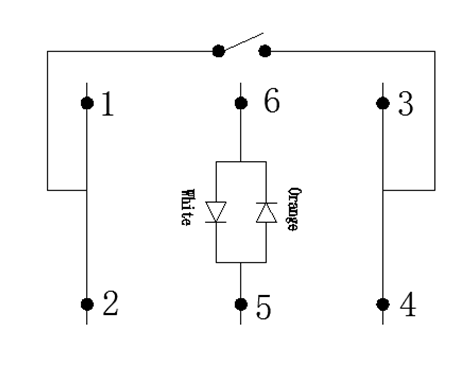

Circuit
| Package | ||
| Quantity(PCS) | 1bag | 500PCS |
| 1CTN | 5000PCS | |
| Wave peak automatic welding condition | ||
| Item | preheat temperature | 100±10℃ |
| preheating time | 60S(max.) | |
| welding temperature | 260±5℃ | |
| welding time | 5±1S | |
| Manual welding condition | ||
| welding temperature | 300℃±10℃ | |
| welding time | 3+1/0S | |
| Soldering iron power | 60W(max.) | |
| Attention： |
| 1.the product color in the catalogue is differ from the material object |
| 2.Please use the thickness 1.6mm PCB |
| 3.Please order with the n (integer) times of the MOQ |
| 4.Please check with me when you use it in auto |
Product overview
| P/N | Picture | Outline size | Type | Force | Travel | PIN | LED color | Button type | Laser sign | |
| CLA851101D08 | |
9.5*8.5*12.4 | momentary | 350±50gf | 1.20±0.3mm | 6 | white | sector | Triangle symbol |  |
| CLA851101D09 | |
9.5*8.5*12.4 | momentary | 350±50gf | 1.20±0.3mm | 6 | white | sector | Horn symbol | |
| CLA856301S01 |  |
- | SMD | 250±50gf | 1.30±0.2mm | - | RED | - | - | |
| CLA851101D10 | |
9.5*8.5*12.4 | momentary | 350±50gf | 1.20±0.3mm | 6 | white | sector | Light symbol | |
| CLA121101D16 | |
9.5*8.5*10.70 | momentary | 350±50gf | 0.8±0.15mm | 6 | blue | round button | OK symbol | |
| CLA121101D15 | |
9.5*8.5*10.70 | momentary | 350±50gf | 0.8±0.15mm | 6 | Orange-white | round button | Power symbol | |
