LA9313

product code CLA931301D46 Rating DC12V 50mA Cotact resistance 100mMax Insulation resistance 100MMin DC250V withstanding voltage AC250V(50-60HZ)for1Minute Electrical life 25,000Cycles (Load) Mechanical life 25,000Cycles (Without Lo

CLA931301D46

CLA931301D46

Applications:

Product Details

product code CLA931301D46
Rating DC12V 50mA
Cotact resistance 100mΩMax
Insulation resistance 100MΩMin DC250V
withstanding voltage AC250V(50-60HZ)for1Minute
Electrical life 25,000Cycles (Load)
Mechanical life 25,000Cycles (Without Load)
Operation force 450+100gf
Travel 1.20±0.25mm
Operating temperature -10℃+70℃
Operation type DIP

Weather resistance -20℃ 96H
heat temperature tolerance 80℃ 96H
wet tolerance 60℃ 90~95%RH 96H

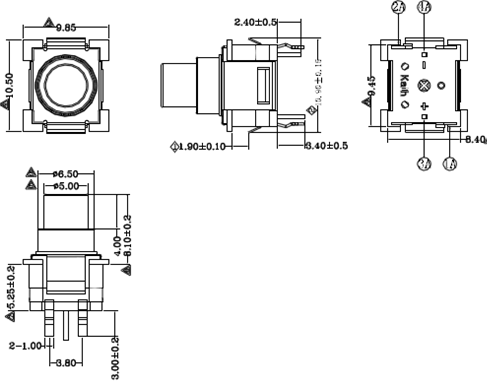

Outline size

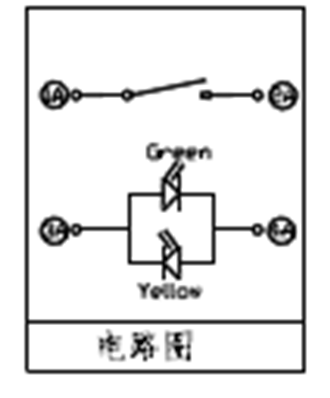

Circuit




Package
Quantity(PCS) 1 bag 1000PCS
  1CTN 20000PCS
Wave peak automatic welding condition
Item preheat temperature 110℃
 preheating time 60S(max.)
welding temperature 260±5℃
welding time 5S
Manual welding condition
  welding temperature 350℃±10℃
  welding time 3+0.5/0S
  Soldering iron power 20W(max.)
Attention:
1.the product color in the catalogue is differ from the material object
2.Please use the thickness 1.6mm PCB
3.Please order with the n (integer) times of the MOQ
4.Please check with me when you use it in auto

Product overview
P/N Picture Outline size Type Force Travel PIN LED color Button type Laser sign PDF
CLA931301D13B-HF CLA931301D13B-HF - - 450±100gf 1.20±0.25mm - Blue - - PDF
CLA931301D26 CLA931301D26 - - 450±100gf 1.20±0.25mm - Blue - - PDF
CLA931301D17 CLA931301D17 10.5*9.85*12.75 momentary 450+100gf 1.20±0.25mm 4 blue long type cap UID sign PDF
CLA931301D27 CLA931301D27 - - 450±100gf 1.20±0.25mm - Yellow & Green Rectangle Cover UID PDF
CLA931301D46 CLA931301D46 6.0*6.0*9.40 DIP 450±50gf 1.20±0.25mm 4 PIN Yellow & Green - - PDF
CLA931301D45 CLA931301D45 10.5*9.85*12.65 DIP 450±100gf 1.20±0.25mm 4 PIN BLUE PDF
CLA931301D25 CLA931301D25 10.5*9.85*12.65 DIP 450±100gf 450±100gf 4 PIN Yellow & Green PDF
CLA931301D12 CLA931301D12 10.5*9.85*12.65 DIP 450±100gf 1.20±0.25mm 4 PIN Yellow & Green PDF
CLA931301D17B CLA931301D17B 10.5*9.85*15.9 momentary 450+100gf 1.20±0.25mm 4 blue long type cap silk screen UID sign PDF
CLA931301D18 CLA931301D18 10.5*9.85*12.25 momentary 450+100gf 1.20±0.25mm 4 yellow-red square cap power sign PDF
