Large micro switch

P/N CMI271509W200A Rating AC 250V 5A / AC 125V 5A Cotact resistance 100mMax Insulation resistance 100MMin DC500V withstanding voltage AC1000V(50-60HZ)for1Minute tactile force / operation force 25050gf actuation travel 1.20mm Max. Totoal tra

CMI271509W200A

CMI271509W200A

Applications:

Product Details

P/N CMI271509W200A
Rating AC 250V 5A / AC 125V 5A
Cotact resistance 100mΩMax
Insulation resistance 100MΩMin DC500V
withstanding voltage AC1000V(50-60HZ)for1Minute
tactile force /
operation force 250±50gf
actuation travel 1.20mm Max.
Totoal travel 2.40±0.3mm
Mechanical life 1,000,000Cycles
Operating temperature -20℃--80℃
Weather resistance
low temperature resistance -20℃±2℃ 96H
 heat resistance 80℃±2℃ 96H
temperature tolerance 80℃±2℃90~95%RH 96H

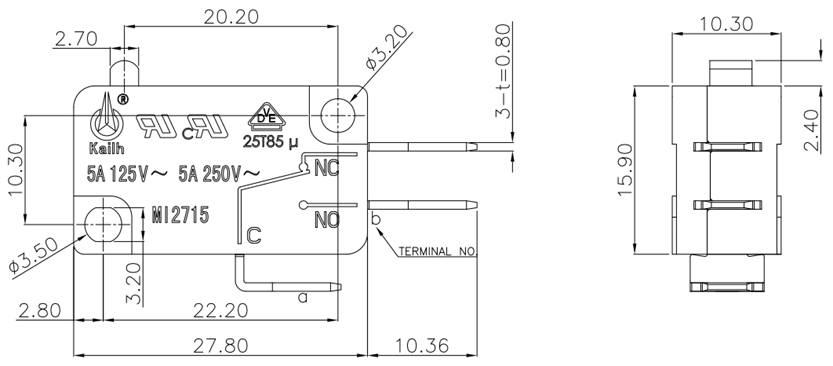

Outline View


Circuit




Package
Quantity(PCS) 1bag 150PCS
  1CTN 1500PCS
Wave peak automatic welding condition
Item preheat temperature 100±5℃
preheating time 60S(max.)
welding temperature 260±5℃
welding time 5±1S
Manual welding condition
  welding temperature 350℃±10℃
  welding time 3S±0.5S
  Soldering iron power 60W(max.)
Attention:
1.the product color in the catalogue is differ from the material object
2.Please use the thickness 1.6mm PCB
3.Please order with the n (integer) times of the MOQ
4.Please check with me when you use it in auto

Product overview
P/N Picture Force range Travel DIP/SMT Life PDF Remarks
CMI271509W200A CMI271509W200A 250±50gf 14.7±0.5mm welding cable 1,000,000Cycles PDF
