Product Details
| P/N | CMI126601D01 | |
| Rating | DC30V 100mA | |
| Cotact resistance | 100mΩMax | |
| Insulation resistance | 100MΩMin DC250V | |
| withstanding voltage | AC500V(50-60HZ)for1Minute | |
| tactile force | / | |
| operation force | 65±15gf | |
| actuation travel | 0.30±0.2mm | |
| Totoal travel | ||
| Mechanical life | 60,000，000Cycles | |
| Operating temperature | -20℃--70℃ | |
| Weather resistance | ||
| low temperature resistance | -20℃±2℃ | 96H |
| heat resistance | 70℃±2℃ | 96H |
| temperature tolerance | 60℃±2℃90~95%RH | 96H |

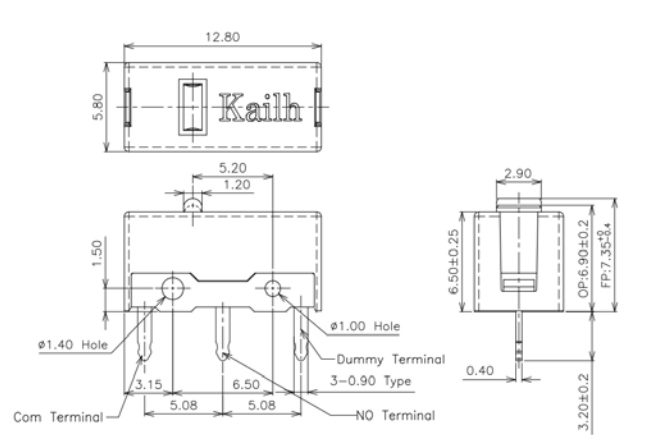

Outline View

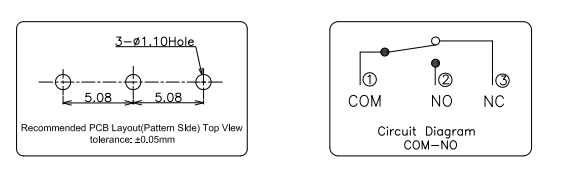

Circuit
| Package | ||
| Quantity(PCS) | 1bag | 1000PCS |
| 1CTN | 20000PCS | |
| Wave peak automatic welding condition | ||
| Item | preheat temperature | 100±5℃ |
| preheating time | 60S(max.) | |
| welding temperature | 260±5℃ | |
| welding time | 5±1S | |
| Manual welding condition | ||
| welding temperature | 350℃±10℃ | |
| welding time | 3S±0.5S | |
| Soldering iron power | 60W(max.) | |
| Attention： |
| 1.the product color in the catalogue is differ from the material object |
| 2.Please use the thickness 1.6mm PCB |
| 3.Please order with the n (integer) times of the MOQ |
| 4.Please check with me when you use it in auto |
Product overview
| P/N | Picture | Feeling type | Touch force | Trigger stroke | Travel | Life | |
| CMI126601D01 | |
65±15gf | 0.30±0.2mm |  |
60,000，000Cycles | ||
| CMI126601D03 |  |
65±10gf | 0.30±0.2mm | |
80,000，000Cycles | ||
| CMI126703D186 |  |
15%-35% | 100±20gf | 0.35±0.2mm | 0.5mm以上 | |
1,000，000Cycles |
| CMI126703D187 | |
15%-35% | 100±20gf | 0.30±0.2mm | 0.5mm以上 | |
5,000，000Cycles |
| CMI126703D180 | |
15%-35% | 100±20gf | 0.30±0.2mm | 0.5mm以上 | |
3,000，000Cycles |
| CMI126703D28 | |
15%-35% | 60±10gf | 0.30±0.2mm | 0.6mm以上 | |
5,000，000Cycles |
| CMI126703D06 | |
15%-40% | 60±10gf | 0.30±0.2mm | 0.6mm以上 | |
3,000，000Cycles |
| CMI126703D01 | |
15%-35% | 70±10gf | 0.35±0.2mm | 0.6mm以上 | |
1,000，000Cycles |
