Product Details
| product code | CPU216610W09 | |
| Rating | 3A 250V AC | |
| Working temperature | -25℃—+55℃ | |
| Action from | Self-locking/Self-repetitive | |
| Action stroke | 3.1mm | |
| Action | 4N | |
| Tightening torque | 5-14N.M | |
| waterproof level | IP67 | |
| Protection level | IK10 | |
| Electrical life | specified load 0.2A250VAC | 100，000 Cycles |
| specified load 1A24DC | 50,000 Cycles | |
| Mechanical life | Self-locking/Self-positioning | 100，000 Cycles/200，000 Cycles |

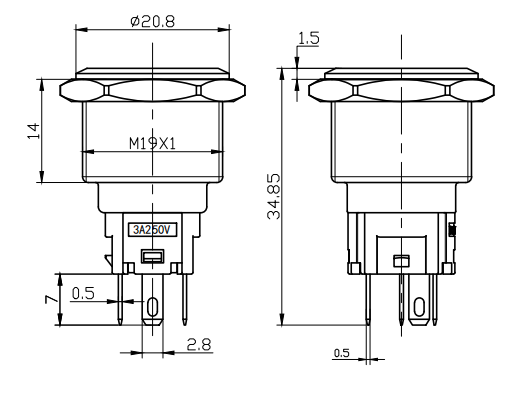

Outline Size

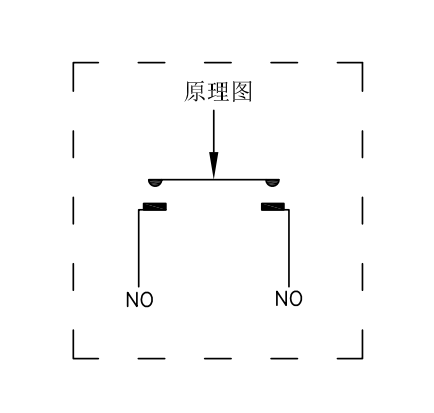

Circuit
| Package | ||
| Quantity(PCS) | 1 plate | 50PCS |
| 1CTN | 750PCS | |
| Attention： |
| 1.the product color in the catalogue is differ from the material object |
| 2.Please order with the n (integer) times of the MOQ |
| 3.Please check with me when you use it in auto |
Product overview
| P/N | Picture | Outline size | Action form | Action stroke | Action | Tightening torque | life | |
| CPU216610W07 |  |
Self-locking | 2.8mm | 3N | 5-14N.M |  |
||
| CPU216610W09 | |
Self-locking/Self-repetitive | 3.1mm | 4N | 5-14N.M | |
