Product Details
| product code | CSL864709D01 | |
| Rating | DC30V 0.5mA | |
| Cotact resistance | 100mΩMax | |
| Insulation resistance | 100MΩMin DC500V | |
| withstanding voltage | AC1000V(50-60HZ)for1Minute | |
| Electrical life | 10,000Cycles(Load) | |
| Mechanical life | 10,000Cycles（Without Load） | |
| Operation force | 200±100gf | |
| Operating temperature | -10℃--70℃ | |
| Operation type | DIP | |
| low temperature resistance | -25℃ | 96H |
| heat resisting property | 80℃ | 96H |
| temperature tolerance | 40℃ 90~95%RH | 96H |

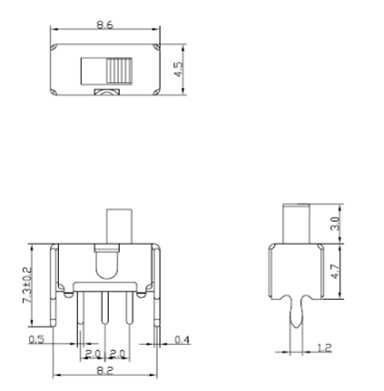

Outline size
Circuit
| Package | ||
| Quantity(PCS) | 1bag | 1000PCS |
| 1CTN | 10000PCS | |
| Wave peak automatic welding condition | ||
| Item | preheat temperature | 180±10℃ |
| preheating time | 15S(max.) | |
| welding temperature | 260±5℃ | |
| welding time | 5±0.5S | |
| Manual welding condition | ||
| welding temperature | 350℃±10℃ | |
| welding time | 3S±0.5S | |
| Soldering iron power | 60W(max.) | |
| Attention： |
| 1.the product color in the catalogue is differ from the material object |
| 2.Please order with the n (integer) times of the MOQ |
| 4.Please check with me when you use it in auto |
Product overview
| P/N | Picture | Force | Travel | PIN QTY | PIN | Life | Remarks | |
| CSL864709D01 | |
200±100gf | 2.0±0.3mm | 3PIN | DIP | 10,000Cy |  |
