6x6 tact switch

product code: CTA603201D01 Rating DC12V 50mA Cotact resistance 100mMax Insulation resistance 100MMin DC250V withstanding voltage AC100V(50-60HZ)for1Minute Electrical life 50,000Cycles (Load) Mechanical life 50,000Cycles (Without L

CTA603201D01

CTA603201D01

Applications:

Product Details

product code: CTA603201D01
Rating DC12V 50mA
Cotact resistance 100mΩMax
Insulation resistance 100MΩMin DC250V
withstanding voltage AC100V(50-60HZ)for1Minute
Electrical life 50,000Cycles (Load)
Mechanical life 50,000Cycles (Without Load)
Operation force 250±50gf
PT 0.25±0.10mm
Operating temperature -10℃+70℃
Operation type momentary
Weather resistance
low temperature resistance -20℃ 96H

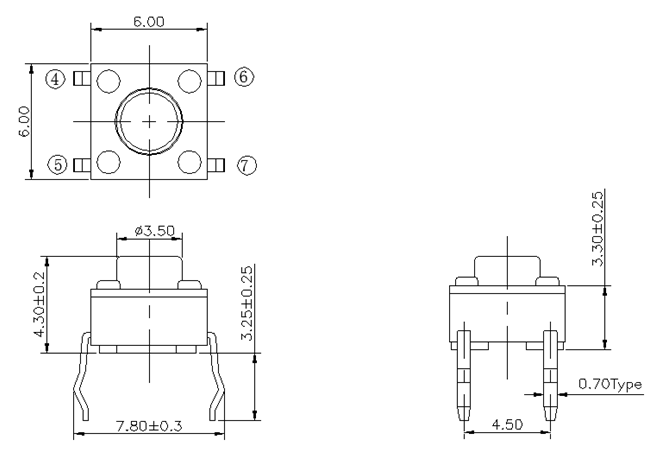

Outline View


Circuit




Package
Quantity(PCS) 1bag 1000PCS
  1CTN 30000PCS
Wave peak automatic welding condition
Item preheat temperature 100±10℃
preheating time 60S(max.)
welding temperature 260±5℃
welding time 5±1S
Manual welding condition
  welding temperature 300℃±10℃
  welding time 3+1/0S
  Soldering iron power 60W(max.)
Attention:
1.the product color in the catalogue is differ from the material object
2.Please use the thickness 1.6mm PCB
3.Please order with the n (integer) times of the MOQ
4.Please check with me when you use it in auto

Product overview
P/N Picture Outline size Type Force Travel PIN PDF Remarks
CTA603201S67 CTA603201S67 6.0*6.0*5.0 SMT 70±20gf 0.20±0.1mm - PDF
CTA603201D61 CTA603201D61 6.0*6.0*4.3 DIP 100±30gf 0.25±0.1mm - PDF
CTA603201D30 CTA603201D30 6.0*6.0*4.3 DIP 160±50gf 0.25±0.10mm - PDF
CTA603201D02 CTA603201D02 6.0*6.0*5.0 DIP 250±50gf 0.25±0.1mm - PDF
CTA603201D15 CTA603201D15 6.0*6.0*4.3 DIP 160±50gf 0.25±0.10mm 4 PIN PDF
CTA603201D11 CTA603201D11 1P11Q620552b DIP 160±50gf 0.25±0.10mm 4 PIN PDF
CTA603201D04 CTA603201D04 6.0*6.0*4.3 DIP 160±50gf 0.25±0.10mm 4 PIN PDF
CTA603201D03 CTA603201D03 6.0*6.0*4.3 DIP 160±50gf 160±50gf 4 PIN PDF
CTA603201D01 CTA603201D01 6.0*6.0*4.3 momentary 250±50gf 0.25±0.10mm 4 PDF
