Product Details
| product code: | CTA455501S01 | |
| Rating | DC12V 50mA | |
| Cotact resistance | 100mΩMax | |
| Insulation resistance | 100MΩMin DC250V | |
| withstanding voltage | AC100V(50-60HZ)for1Minute | |
| Electrical life | 300，000Cycles （Load） | |
| Mechanical life | 300，000Cycles （Without Load） | |
| Operation force | 160±30gf | |
| PT | 0.2+0.1/-0.05mm | |
| Operating temperature | -10℃+70℃ | |
| Operation type | momentary | |
| Weather resistance | ||
| low temperature resistance | -20℃ | 96H |

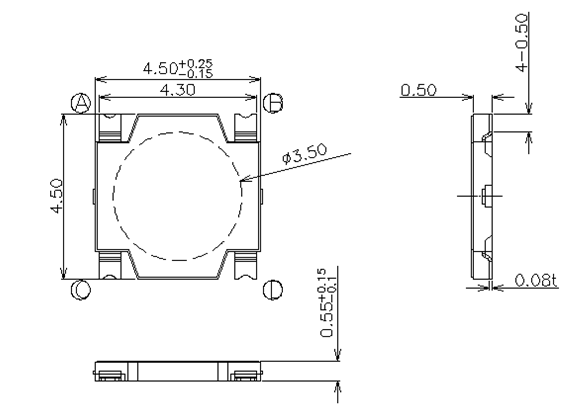

Outline View

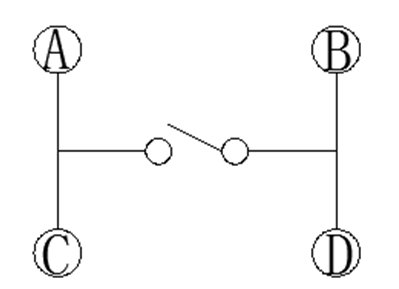

Circuit
| Package | ||
| Quantity(PCS) | 1bag | 10000PCS |
| 1CTN | 70000PCS | |
| Wave peak automatic welding condition | ||
| Item | preheat temperature | 100±10℃ |
| preheating time | 60S(max.) | |
| welding temperature | 260±5℃ | |
| welding time | 5±1S | |
| Manual welding condition | ||
| welding temperature | 300℃±10℃ | |
| welding time | 3+1/0S | |
| Soldering iron power | 60W(max.) | |
| Attention： |
| 1.the product color in the catalogue is differ from the material object |
| 2.Please use the thickness 1.6mm PCB |
| 3.Please order with the n (integer) times of the MOQ |
| 4.Please check with me when you use it in auto |
Product overview
| P/N | Picture | Outline size | Type | Force | Travel | PIN | Remarks | |
| CTA455501S01 | |
4.5*4.5*0.55 | momentary | 160±30gf | 0.2+0.1/-0.05mm | 4 |  |
