EN7236 series

P/N CEN723609W10-NW Rating DC5V 1mA Cotact resistance 10Max Insulation resistance 50MMin DC50V withstanding voltage AC50V(50-60HZ)for1Minute Electrical life 100,000Cycles (Load) Pulse / Torque force 10-25gf.cm Brake number / Mechanica

CEN723609W10-NW

CEN723609W10-NW

Applications:

Product Details

P/N CEN723609W10-NW
Rating DC5V 1mA
Cotact resistance 10ΩMax
Insulation resistance 50MΩMin DC50V
withstanding voltage AC50V(50-60HZ)for1Minute
Electrical life 100,000Cycles (Load)
Pulse        /
Torque force 10-25gf.cm
Brake number        /
Mechanical life 100,000Cycles(Without Load)
Operating temperature -15℃+70℃
Weather resistance
low temperature resistance -20℃±2℃ 96H
heat resisting property 80℃±2℃ 96H
Moisture resistance 60℃±2℃ 90~95%RH 96H

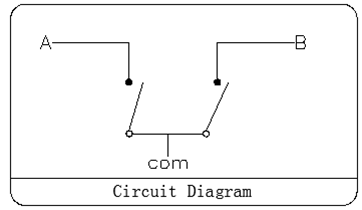

Circuit




Package
Quantity(PCS) 1 bag 1000PCS
  1CTN 10000PCS
Wave peak automatic welding condition
Item preheat temperature 100±5℃
preheating time 60S(max.)
welding temperature 260±5℃
welding time 3±1S
Manual welding condition
  welding temperature 350℃±5℃
  welding time 3±1S
  Soldering iron power 20W(max.)
Attention:
1.the product color in the catalogue is differ from the material object
2.Please order with the n (integer) times of the MOQ
3.Please check with me when you use it in auto



Product overview
Product code Picture Line length Torque Cover Aperture PDF Remarks
CEN723609W10 CEN723609W10 30.00mm 10-25gf.cm 3#cover 100,000 Cycles PDF
CEN723609W02 CEN723609W02 50.00mm 15-30gf.cm 2#cover 100,000 Cycles PDF
CEN723609W17 CEN723609W17 30.00mm 10-25gf.cm 1#Cover 100,000 Cycles PDF
CEN723609W10-NW CEN723609W10-NW 30.00mm 10-25gf.cm 3# cover 100,000 Cycles PDF
CEN723609W21 CEN723609W21 none 15-30gf.cm 4#cover 100,000 Cycles PDF
CEN723609W01-NW CEN723609W01-NW none 15-30gf.cm 1# cover 100,000 Cycles PDF
