Product Details
P/N | CEN971012R07 | |
Rating | DC5V 1mA | |
Cotact resistance | 5ΩMax | |
Insulation resistance | 50MΩMin DC50V | |
withstanding voltage | AC100V(50-60HZ)for1Minute | |
Electrical life | 200,000Cycles (Load) | |
Pulse | 12Plus/360° | |
Torque force | 15-30gf.cm | |
Brake number | 24 | |
Mechanical life | 300,000Cycles(Without Load) | |
Operating temperature | -25℃+80℃ | |
Weather resistance | ||
low temperature resistance | -20℃ | 96H |
heat resisting property | 80℃ | 96H |
Moisture resistance | 60℃±2℃90~95%RH | 96H |

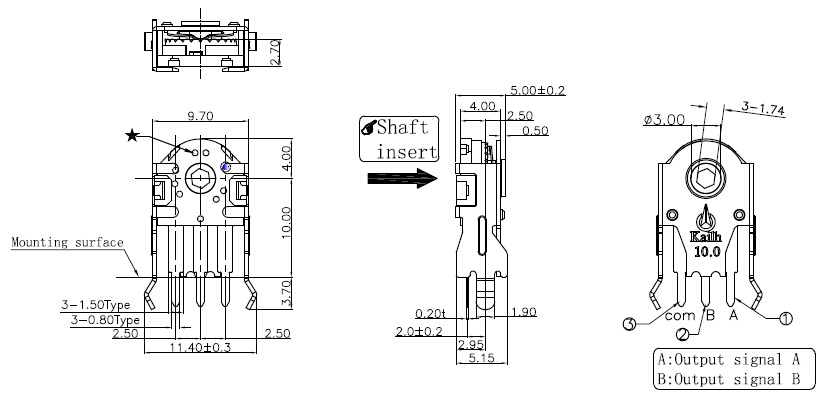

Outline size

Circuit

Package | ||
Quantity(PCS) | 1 bag | 1000PCS |
1CTN | 10000PCS | |
Wave peak automatic welding condition | ||
Item | preheat temperature | 100±10℃ |
preheating time | 60S(max.) | |
welding temperature | 260±5℃ | |
welding time | 5±1S | |
Manual welding condition | ||
welding temperature | 300℃±10℃ | |
welding time | 3+1/0S | |
Soldering iron power | 60W(max.) |
Attention: |
1.the product color in the catalogue is differ from the material object |
2.Please use a 1.6mm board thickness of the printed circuit board |
3.Please order with the n (integer) times of the MOQ |
4.Please check with me when you use it in auto |
Product overview
Product code | Picture | Axis height | Torque | Aperture | Life | Remarks | |
CEN971112R12-2 | ![]() |
11.0mm | 10-25gf.cm | 1.74mm | 300,000Cycles | ![]() |
rotary:grey |
CEN971412R01 | ![]() |
14.0mm | 15-30gf.cm | 1.67mm | 300,000 Cycles | ![]() |
|
CEN971012R32 | ![]() |
11.0mm | 10-25gf.cm | 1.74mm | 300,000 Cycles | ![]() |
- |
CEN971412R04 | ![]() |
14.0mm | 15-30gf.cm | 1.76mm | 300,000 Cycles | ![]() |
|
CEN975012R07 | ![]() |
5.0mm | 14-26gf.cm | 1.74mm | 300,000Cycles | ![]() |
|
CEN971012R07 | ![]() |
10.0mm | 15-30gf.cm | 1.74mm | 200,000 Cycles | ![]() |
- |
CEN979012R31 | ![]() |
9.0mm | 20-40gf.cm | 1.76mm | 300,000 Cycles | ![]() |
|
CEN971112R04-2 | ![]() |
11.0mm | 10-25gf.cm | 1.76mm | 300,000 Cycles | ![]() |
rotary:grey |
CEN975512R13 | ![]() |
5.5mm | 15-30gf.cm | 1.74mm | 300,000 Cycles | ![]() |
|
CEN975112R02 | ![]() |
5.1mm | 15-30gf.cm | 1.74mm | 300,000 Cycles | ![]() |
- |
