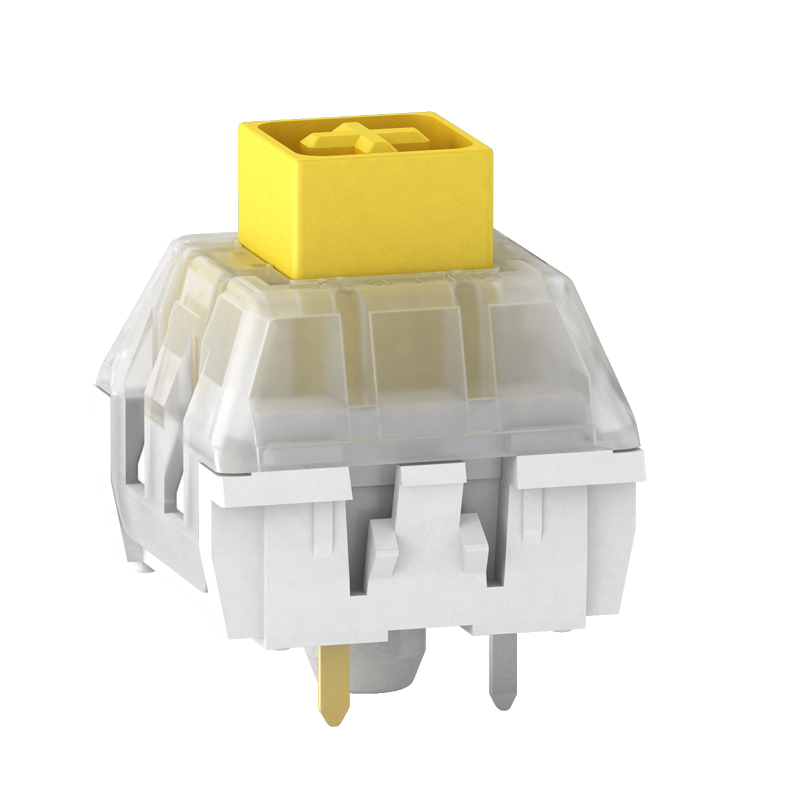

• CPG1511F01S08



  • Details
    Product code CPG1511F01S08
    Rating DC12V10mA
    Cotact resistance 200mΩMax
    Insulation resistance 100MΩMinDC100V
    withstanding voltage AC100V(50-60HZ)for1Minute
    Tactile force 70±10gf
    Actuation force        /
    Actuation travel 1.8±0.3mm
    Total travel 3.6+0/-0.3mm
    Mechanical life 80,000,000Cycles
    Operating temperature -20℃-+70℃
    Weather resistance
    low temperature resistance -20℃±2℃ 48H
    heat resisting property 70℃±2℃ 48H
    Moisture resistance 60℃±2℃90~95%RH 48H

    Outline view


    Quantity(PCS) 1 bag 1000PCS
      1CTN 4000PCS
    Wave peak automatic welding condition
    Item preheat temperature 100±5℃
    preheating time 60S(max.)
    welding temperature 260±5℃
    welding time 3±0.5S
    Manual welding condition
      welding temperature 350℃±10℃
      welding time 3S±0.5S
      Soldering iron power 20W(max.)
    1.the product color in the catalogue is differ from the material object
    2.Please use the thickness 1.6mm PCB
    3.Please order with the n (integer) times of the MOQ
    4.Please check with me when you use it in auto
