Choc Switch

Product code CPG135301D01 Rating DC12V10mA Cotact resistance 200mMax Insulation resistance 100MMinDC100V withstanding voltage AC100V(50-60HZ)for1Minute Tactile force -------- Actuation force 5010gf Actuation travel 1.30.3mm Total travel 3.2

CPG135301D01

CPG135301D01

Applications:

Product Details

Product code CPG135301D01
Rating DC12V10mA
Cotact resistance 200mΩMax
Insulation resistance 100MΩMinDC100V
withstanding voltage AC100V(50-60HZ)for1Minute
Tactile force --------
Actuation force 43±10gf
Actuation travel 1.3±0.3mm
Total travel 3.2±0.25mm
Mechanical life 50,000,000Cycles
Operating temperature -20℃-+70℃
Weather resistance
low temperature resistance -20℃±2℃ 48H
heat resisting property 70℃±2℃ 48H
Moisture resistance 60℃±2℃90~95%RH 48H

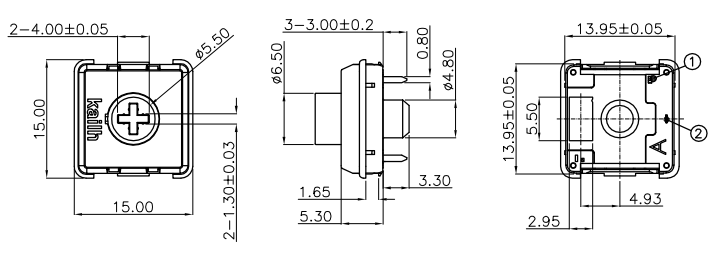

Outline view



Circuit


Package
Quantity(PCS) 1 bag 1000PCS
  1CTN 6000PCS
Wave peak automatic welding condition
Item preheat temperature 100±5℃
preheating time 60S(max.)
welding temperature 260±5℃
welding time 5±1S
Manual welding condition
  welding temperature 350℃±10℃
  welding time 3S±0.5S
  Soldering iron power 20W(max.)
Precautions:
1.the product color in the catalogue is differ from the material object
2.Please use the thickness 1.6mm PCB
3.Please order with the n (integer) times of the MOQ
4.Please check with me when you use it in auto

Product overview
P/N Picture Feeling Actuation force Actuation travel Total travel Life PDF Remarks
CPG135301D01 CPG135301D01 Linear 43±10gf 1.3±0.3mm 3.2±0.25mm 50,000,000Cycles PDF CHOC SWITCH V2
CPG135301D02 CPG135301D02 Tactile 45±10gf 1.3±0.3mm 3.2±0.25mm 50,000,000Cycles PDF CHOC SWITCH V2
CPG135301D03 CPG135301D03 Clicky 43±10gf 1.3±0.3mm 3.2±0.25mm 50,000,000Cycles PDF CHOC SWITCH V2
CPG135001D03 CPG135001D03 Clicky 60±10gf 1.5±0.5mm 3.0±0.5mm 70,000,000Cycles PDF
CPG135001D02 CPG135001D02 Tactile 60±10gf 1.5±0.5mm 3.0±0.5mm 70,000,000Cycles PDF
CPG135001D01 CPG135001D01 Linear 50±10gf 1.5±0.5mm 3.0±0.5mm 70,000,000Cycles PDF
