Product Details
| Product code | CPG135301D03 | |
| Rating | DC12V10mA | |
| Cotact resistance | 200mΩMax | |
| Insulation resistance | 100MΩMinDC100V | |
| withstanding voltage | AC100V(50-60HZ)for1Minute | |
| Tactile force | 53±10gf | |
| Actuation force | 43±10gf | |
| Actuation travel | 1.3±0.3mm | |
| Total travel | 3.2±0.25mm | |
| Mechanical life | 50,000,000Cycles | |
| Operating temperature | -20℃-+70℃ | |
| Weather resistance | ||
| low temperature resistance | -20℃±2℃ | 48H |
| heat resisting property | 70℃±2℃ | 48H |
| Moisture resistance | 60℃±2℃90~95%RH | 48H |

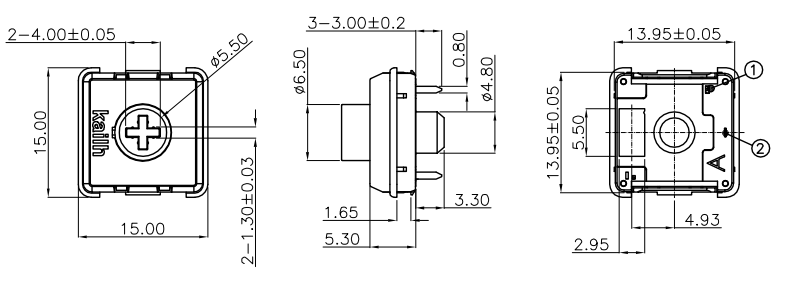

Outline view
Circuit
| Package | ||
| Quantity(PCS) | 1 bag | 1000PCS |
| 1CTN | 6000PCS | |
| Wave peak automatic welding condition | ||
| Item | preheat temperature | 100±5℃ |
| preheating time | 60S(max.) | |
| welding temperature | 260±5℃ | |
| welding time | 5±1S | |
| Manual welding condition | ||
| welding temperature | 350℃±10℃ | |
| welding time | 3S±0.5S | |
| Soldering iron power | 20W(max.) | |
| Precautions： |
| 1.the product color in the catalogue is differ from the material object |
| 2.Please use the thickness 1.6mm PCB |
| 3.Please order with the n (integer) times of the MOQ |
| 4.Please check with me when you use it in auto |
Product overview
| P/N | Picture | Feeling | Actuation force | Actuation travel | Total travel | Life | Remarks | |
| CPG135301D01 |  |
Linear | 43±10gf | 1.3±0.3mm | 3.2±0.25mm | 50,000,000Cycles |  |
CHOC SWITCH V2 |
| CPG135301D02 |  |
Tactile | 45±10gf | 1.3±0.3mm | 3.2±0.25mm | 50,000,000Cycles | |
CHOC SWITCH V2 |
| CPG135301D03 | |
Clicky | 43±10gf | 1.3±0.3mm | 3.2±0.25mm | 50,000,000Cycles | |
CHOC SWITCH V2 |
| CPG135001D03 |  |
Clicky | 60±10gf | 1.5±0.5mm | 3.0±0.5mm | 50,000,000Cycles | |
|
| CPG135001D02 |  |
Tactile | 60±10gf | 1.5±0.5mm | 3.0±0.5mm | 50,000,000Cycles | |
|
| CPG135001D01 |  |
Linear | 50±10gf | 1.5±0.5mm | 3.0±0.5mm | 50,000,000Cycles | |
