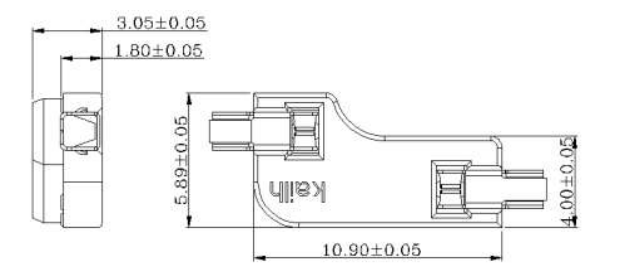

CPG151101S11-16

Product code		CPG151101S11-16
Rating		12V AC/DC max：2V DCmin
Withstanding voltage		10mA AC/DC max:10uA DC min
Contact Resistance		100MΩ max
Insulation Resistance		100MΩ min （500V)
Dielectric withstanding voltage		AC100V(50-60Hz）.1分钟
Mating force		3KG MAX
Unmating force		0.2KG min
Mechanical life		5000
Operating Temperature Rabge		-20℃-+70℃

Environmental Performance
Cold test	-20℃±2℃	48H
Heat test	70℃±2℃	48H
Soldering heat test	260℃±5°C	96H

Package
Quantity(PCS)	1Tray	13
	1 Carton	26000PCS
Soldering condition
Preheating zone	Heating zone	Speed＜2℃/Ｓ, Preheating time15 S Max,temperture150℃
	Heatpreservati on area	Speed1.2～3.5℃/Ｓ, Preheating time120 S Max,temperture180℃
	Fast heating zone	Speed3.5～4.5℃/Ｓ,Preheating time140 S Max,temperture230℃

Weld area	Weld time	Welding time 40 S Max ,welding temperature peak value,3 sec Max
	Temperature of solder	260℃±5℃
	Number of soldering	2time Max (But should down heat of the first soldering)
	Printed wiring board	Single side copper-clad laminates

Notes：

1.Please be cautious not to give excessive static load connector.

2.Connector be careful not to stack up P. W. B. after switches were soldered

3.Preservation under high temperature and high humidity or corrosive gas should be avoided

Especially. When you need to preserve for a long period, do not open the carton.

4.The standard storage period is 3 months, with maximum up to 6months, preferably to be used as

soon as possible. After opening the package, you should put the remaining switches in a plastic bag

to prevent from damp and corrosive gas.
