Notebook Switch

Product code CPG123201D01 Rating DC12V10mA Cotact resistance 200mMax Insulation resistance 100MMinDC500V withstanding voltage AC100V(50-60HZ)for1Minute Tactile force 6010gf Actuation force 5010gf Actuation travel 1.20.5mm Total travel 2.40.

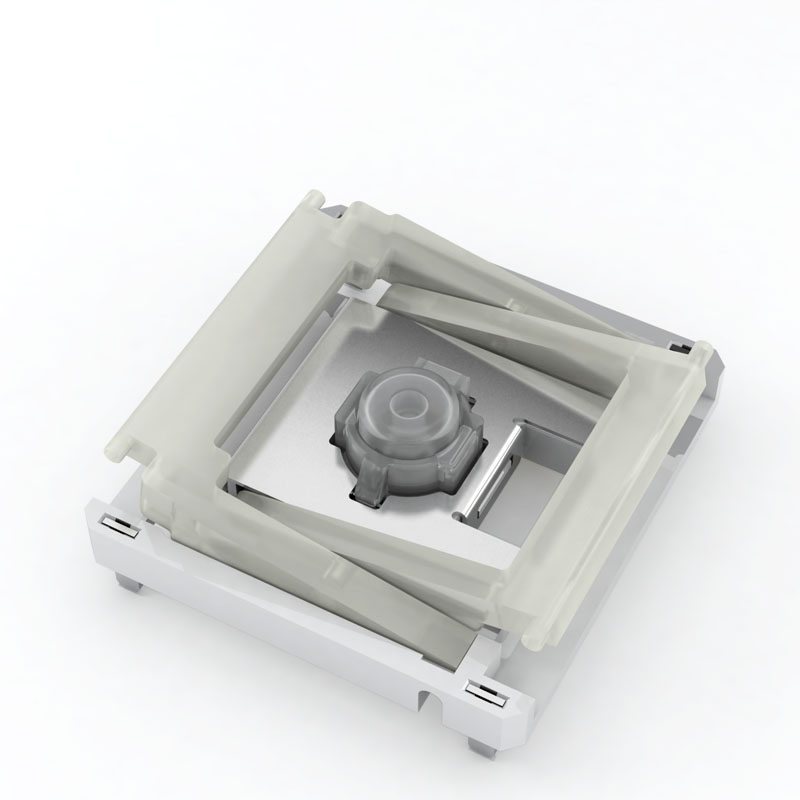

CPG123201D01

CPG123201D01

Applications:

Product Details

Product code CPG123201D01
Rating DC12V10mA
Cotact resistance 200mΩMax
Insulation resistance 100MΩMinDC500V
withstanding voltage AC100V(50-60HZ)for1Minute
Tactile force 60±10gf
Actuation force 50±10gf
Actuation travel 1.2±0.5mm
Total travel 2.4±0.5mm
Mechanical life 25,000,000Cycles
Operating temperature -20℃-+70℃
Weather resistance
low temperature resistance -20℃±2℃ 96H
heat resisting property 70℃±2℃ 96H
Moisture resistance 60℃±2℃90~95%RH 96H

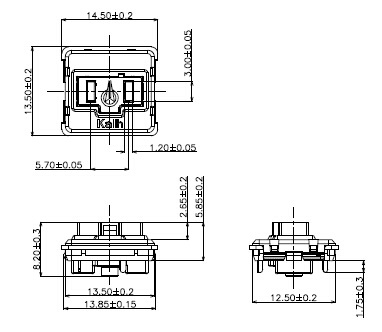

Outline view


Circuit




Package
Quantity(PCS) 1 bag 750PCS
  1CTN 4500PCS
Wave peak automatic welding condition
Item preheat temperature 100±5℃
preheating time 60S(max.)
welding temperature 260±5℃
welding time 3±0.5S
Manual welding condition
  welding temperature 350℃±10℃
  welding time 3S±0.5S
  Soldering iron power 20W(max.)
Precautions:
1.the product color in the catalogue is differ from the material object
2.Please use the thickness 1.6mm PCB
3.Please order with the n (integer) times of the MOQ
4.Please check with me when you use it in auto

55±15gf

Product overview

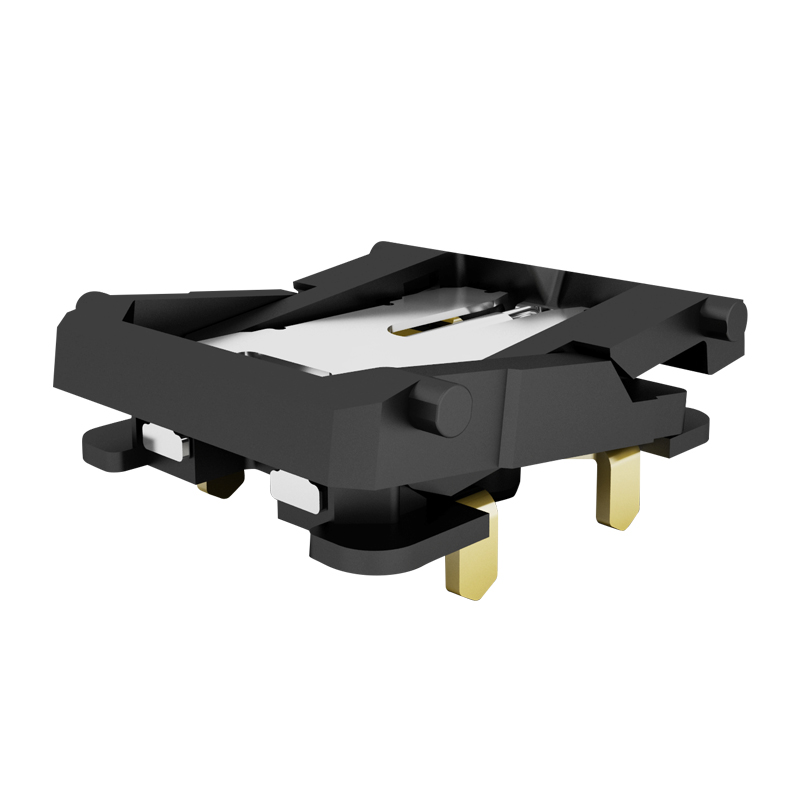

P/N Picture Feeling Actuation force Actuation travel Total travel Life PDF Remarks
CPG142501D02 CPG142501D02 Tactile 60±10gf 1.2±0.3mm 2.0±0.3mm 20,000,000Cycles PDF
CPG142501D03 CPG142501D03 Clicky 60±10gf 1.2±0.3mm 2.0±0.3mm 20,000,000Cycles PDF
CPG123201D01 CPG123201D01 Clicky 60±15gf 1.2±0.5mm 2.4±0.5mm 25,000,000Cycles PDF
CPG144201S01 CPG144201S01 Clicky 60±10gf 1.4±0.3mm 2.7±0.3mm 20,000,000cycles PDF
CPG132501D01 CPG132501D01 Clicky 60±10gf 1.1±0.3mm 1.8±0.3mm 20,000,000cycles PDF
CPG131601D01 CPG131601D01 Clicky 55±15gf 1.1±0.3mm 1.9±0.3mm 20,000,000cycles PDF
