LA6063

product code CLA606301D107 Rating DC12V 50mA Cotact resistance 100mMax Insulation resistance 100MMin DC250V withstanding voltage AC250V(50-60HZ)for1Minute Electrical life / Mechanical life 100,000Cycles (Without Load) Operation force

CLA606301D107

CLA606301D107

Applications:

Product Details

product code CLA606301D107
Rating DC12V 50mA
Cotact resistance 100mΩMax
Insulation resistance 100MΩMin DC250V
withstanding voltage AC250V(50-60HZ)for1Minute
Electrical life         /
Mechanical life 100,000Cycles (Without Load)
Operation force 150±50gf
Travel 0.25±0.1mm
Operating temperature -10℃— +70℃
Operation type DIP
Weather resistance
low temperature resistance -20℃ 96H
heat temperature resistance 80℃ 96H
temperature tolerance 60℃ 90~95%RH 96H

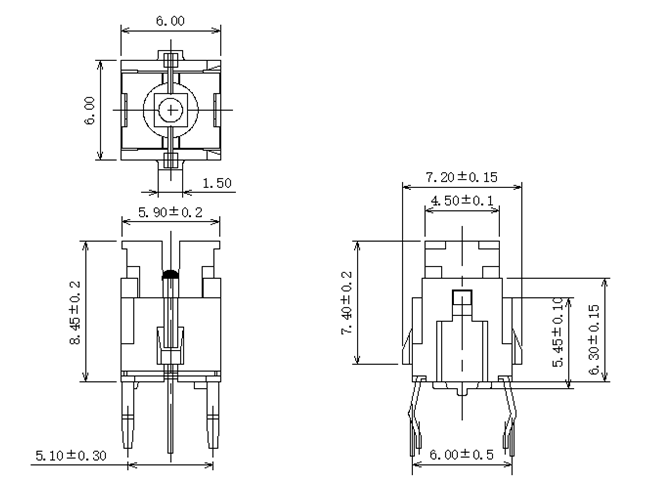

Outline size

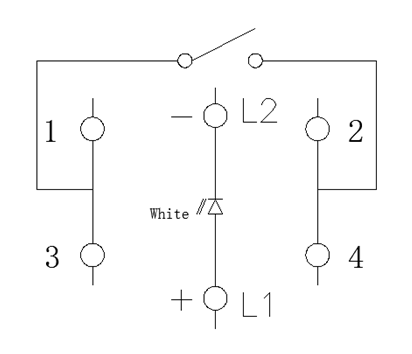

Circuit




Package
Quantity(PCS) 1bag 1000PCS
  1CTN 20000PCS
Wave peak automatic welding condition
Item preheat temperature 110℃
preheating time 60S(max.)
welding temperature 260±5℃
welding time 5S
Manual welding condition
  welding temperature 350℃±5℃
  welding time 3+1/0S
  Soldering iron power 60W(max.)
Attention:
1.the product color in the catalogue is differ from the material object
2.Please use the thickness 1.6mm PCB
3.Please order with the n (integer) times of the MOQ
4.Please check with me when you use it in auto



CLA606301D107

Product overview
P/N Picture Outline size Type Force Travel PIN LED color Button type Laser sign PDF
CLA606301D127 CLA606301D127 6.0*6.0*9.40 DIP 150±50gf 0.25±0.10mm 4 - - PDF
CLA606301D107 CLA606301D107 6.0*6.0*9.40 DIP 150±50gf 0.25±0.10mm 4 - PDF
CLA606301D130 CLA606301D130 6.0*6.0*9.40 DIP 200±50gf 0.25±0.10mm 4 GREEN - - PDF
CLA606301D132 CLA606301D132 6.0*6.0*9.40 DIP 150±50gf 0.25±0.10mm 4 - - - PDF
CLA606301D87 CLA606301D87 6.0*6.0*9.40 momentary 220±30gf 0.25±0.1mm 4 white PDF
CLA606301D11 CLA606301D11 6.0*6.0*9.40 momentary 150±50gf 0.25±0.1mm 6 blue PDF
CLA606301D02 CLA606301D02 6.0*6.0*8.45 momentary 150±50gf 0.25±0.1mm 6 white PDF
