Product Details
| product code | CLA682501S01 | |
| Rating | DC12V 50mA | |
| Cotact resistance | 100mΩMax | |
| Insulation resistance | 100MΩMin DC250V | |
| withstanding voltage | AC250V(50-60HZ)for1Minute | |
| Electrical life | 50，000Cycles （Load） | |
| Mechanical life | 50，000Cycles （Without Load） | |
| Operation force | 160+80/-30gf | |
| Travel | 0.20±0.15mm | |
| Operating temperature | -10℃+70℃ | |
| Operation type | momentary | |
| Weather resistance | -20℃ | 96H |

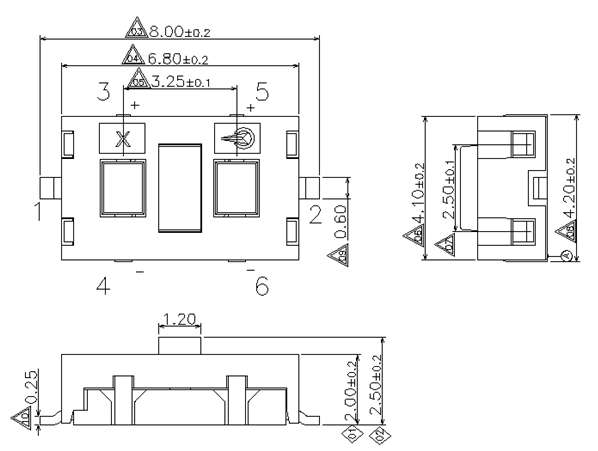

Outline size

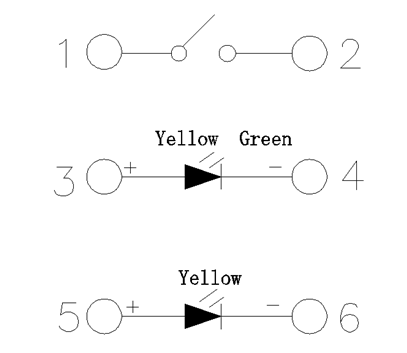

Circuit
| Package | ||
| Quantity(PCS) | 1 bag | 108PCS |
| 1CTN | 4320PCS | |
| Wave peak automatic welding condition | ||
| Item | preheat temperature | 100±10℃ |
| preheating time | 60S(max.) | |
| welding temperature | 260±5℃ | |
| welding time | 5±1S | |
| Manual welding condition | ||
| welding temperature | 300℃±10℃ | |
| welding time | 3+1/0S | |
| Soldering iron power | 60W(max.) | |
| Attention： |
| 1.the product color in the catalogue is differ from the material object |
| 2.Please use the thickness 1.6mm PCB |
| 3.Please order with the n (integer) times of the MOQ |
| 4.Please check with me when you use it in auto |
Product overview
| P/N | Picture | Outline size | Type | Force | Travel | PIN | LED color | Button type | Laser sign | |
| CLA682501S01UP |  |
- | - | 160+80/-30gf | 0.20±0.15mm | - | Yellow & Green |  |
||
| CLA682501S02 | |
6.8*4.2*2.5 | momentary | 160+80/-30gf | 0.20±0.15mm | 4 | blue | |
||
| CLA682501S01 | |
6.8*4.2*2.5 | momentary | 160+80/-30gf | 0.20±0.15mm | 6 | green-yellow | |
