• CLS661409S02

CLS661409S02

Used:



  • Details
    product code CLS661409S02
    Rating DC5V  300mA
    Cotact resistance 100mΩMax
    Insulation resistance 100MΩMin DC500V
    withstanding voltage AC250V(50-60HZ)for1Minute
    Electrical life 10,000Cycles(Load)
    Mechanical life 10,000Cycles(Without Load)
    Operation force 150±80gf
    Operating temperature -40℃--85℃
    Operation type   DIP
    low temperature resistance -20℃ 96H
    heat resisting property 80℃ 96H
    temperature tolerance 60℃  90~95%RH 96H

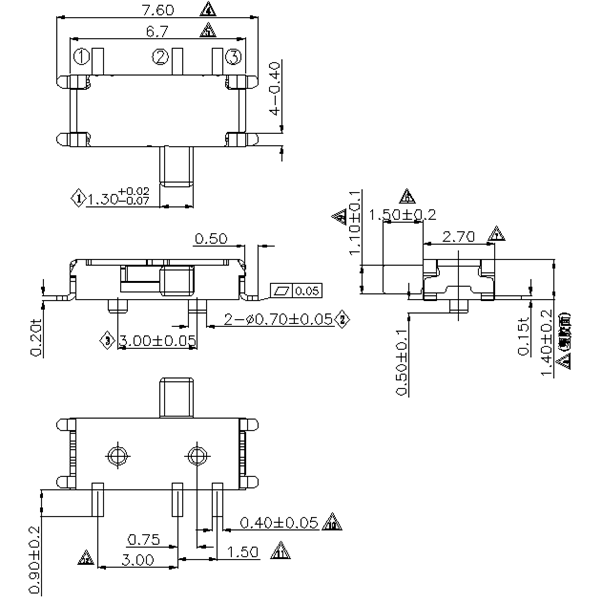

    Outline size


    Circuit




    Package
    Quantity(PCS) 1bag 3000PCS
      1CTN 57000PCS
    Wave peak automatic welding condition
    Item preheat temperature 180±10℃
    preheating time 15S(max.)
    welding temperature 260±5℃
    welding time 40S
    Manual welding condition
      welding temperature 350℃±10℃
      welding time 3S±0.5S
      Soldering iron power 20W(max.)
    Attention:
    1.the product color in the catalogue is differ from the material object
    2.Please order with the n (integer) times of the MOQ
    4.Please check with me when you use it in auto
