BOX Switch




Product Details

Product code CPG1511F01S110
Rating DC12V10mA
Cotact resistance 200mΩMax
Insulation resistance 100MΩMinDC100V
withstanding voltage AC100V(50-60HZ)for1Minute
Tactile force 55±15gf
Actuation force 45±15gf
Actuation travel 1.8±0.4mm
Total travel 3.60±0.3mm
Mechanical life 80,000,000Cycles
Operating temperature -20℃-+70℃
Weather resistance
low temperature resistance -20℃±2℃ 48H
heat resisting property 70℃±2℃ 48H
Moisture resistance 60℃±2℃90~95%RH 48H

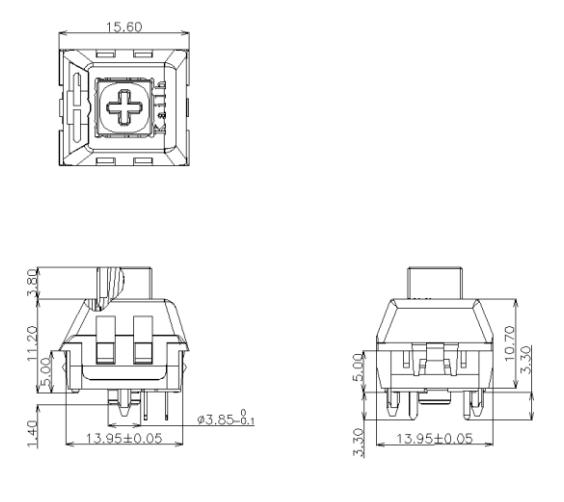

Outline view


Quantity(PCS) 1 bag 1000PCS
  1 CTN 4000PCS
Wave peak automatic welding condition
Item preheat temperature 100±5℃
preheating time 60S(max.)
welding temperature 260±5℃
welding time 3±0.5S
Manual welding condition
  welding temperature 350℃±10℃
  welding time 3S±0.5S
  Soldering iron power 20W(max.)
1.the product color in the catalogue is differ from the material object
2.Please use the thickness 1.6mm PCB
3.Please order with the n (integer) times of the MOQ
4.Please check with me when you use it in auto
Product overview
P/N Picture Feeling Actuation force Actuation travel Total travel Life PDF Remarks
CPG1511F01S172 CPG1511F01S172 Tactile 45±10gf 2.0±0.4mm 3.6±0.4mm 100,000,000Cycles PDF Whale
CPG1511F01S129 CPG1511F01S129 Linear 45±10gf 1.8±0.4mm 3.6±0.4mm 100,000,000Cycles PDF Islet
CPG1511F01S110 CPG1511F01S110 Clicky 55±10gf 1.80±0.4mm 3.60±0.3mm 80,000,000Cycles PDF BOX Switch V2 White
CPG1511F01S109 CPG1511F01S109 Tactile 75±10gf 2.0±0.4mm 3.60±0.3mm 50,000,000Cycles PDF BOX Switch V2 Brown
CPG1511F01S108 CPG1511F01S108 Linear 40±10gf 1.8±0.4mm 3.60±0.3mm 80,000,000Cycles PDF BOX Switch V2 Red
CPG1511F01S80-1 CPG1511F01S80-1 Tacttile 57±10gf 1.8±0.4mm 3.60±0.3mm 100,000,000Cycles PDF BOX jellyfish switch X
CPG1511F01S70-1 CPG1511F01S70-1 Linear 50±10gf 1.8±0.4mm 3.60±0.3mm 100,000,000Cycles PDF BOX jellyfish switch Y
CPG1511F01S77-1 CPG1511F01S77-1 lanear 50±10gf 1.8±0.4mm 3.6±0.3mm 100,000,000Cycles PDF Hush switch
CPG1511F01S69 CPG1511F01S69 Linear 35±10gf 1.8±0.4mm 3.6±0.4mm 80,000,000Cycles PDF BOX Silence Switch
CPG1511F01S38 CPG1511F01S38 Tactile 45±10gf 1.8±0.4mm 3.6±0.4mm 80,000,000Cycles PDF BOX Silence Switch
CPG1511F01S02 CPG1511F01S02 Clicky 55±10gf 1.8±0.3mm 3.6±0.3mm 80,000,000Cycles PDF
CPG1511F01S03 CPG1511F01S03 Tactile 60±10gf 1.8±0.3mm 3.6±0.3mm 80,000,000Cycles PDF
CPG1511F01S04 CPG1511F01S04 Linear 45±10gf 1.8±0.3mm 3.6±0.3mm 80,000,000Cycles PDF
CPG1511F01S05 CPG1511F01S05 Linear 60±10gf 1.8±0.3mm 3.6±0.3mm 80,000,000Cycles PDF
