MINI micro switch

P/N CMI873101D01-3 Rating DC30V 0.1A Cotact resistance 100mMax Insulation resistance 100MMin DC250V withstanding voltage AC500V(50-60HZ)for1Minute tactile force / operation force 6010gf actuation travel 0.30.2mm Totoal travel 0.45mm以上 M




Product Details

P/N CMI873101D01-3
Rating DC30V  0.1A
Cotact resistance 100mΩMax
Insulation resistance 100MΩMin DC250V
withstanding voltage AC500V(50-60HZ)for1Minute
tactile force /
operation force 60±10gf
actuation travel 0.3±0.2mm
Totoal travel 0.45mm以上
Mechanical life 3,000,000Cycles
Operating temperature -20℃--70℃
Weather resistance
low temperature resistance -20℃±2℃ 96H
 heat resistance 70℃±2℃ 96H
temperature tolerance 60℃±2℃90~95%RH 96H

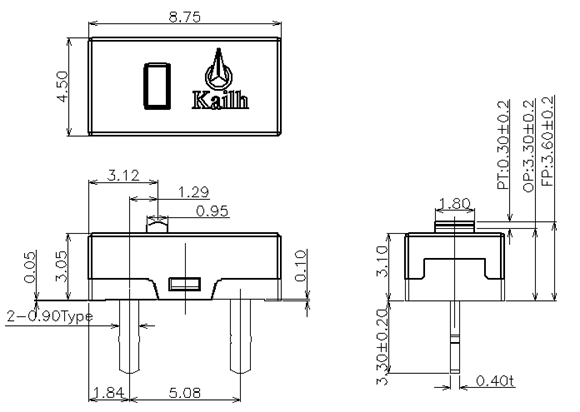

Outline View



Quantity(PCS) 1bag 1000PCS
  1CTN 20000PCS
Wave peak automatic welding condition
Item preheat temperature 100±5℃
preheating time 60S(max.)
welding temperature 260±5℃
welding time 5±1S
Manual welding condition
  welding temperature 350℃±10℃
  welding time 3S±0.5S
  Soldering iron power 60W(max.)
1.the product color in the catalogue is differ from the material object
2.Please use the thickness 1.6mm PCB
3.Please order with the n (integer) times of the MOQ
4.Please check with me when you use it in auto

Product overview
P/N Picture Force range Travel DIP/SMT Life PDF Remarks
CMI873101D01-5 CMI873101D01-5 60±10gf 0.3±0.2mm 3,000,000Cycles PDF
CMI873101D01 CMI873101D01 60±15gf 0.3±0.2mm 3,000,000 Cycles PDF
CMI873101S01-1 CMI873101S01-1 50-60gf 0.3±0.2mm 500,000Cycles PDF
CMI873101S01 CMI873101S01 60±15gf 0.3±0.2mm 500,000Cycles PDF
CMI873101D01-3 CMI873101D01-3 60±10gf 0.3±0.2mm DIP 3,000,000Cycles PDF
CMI873101S05 CMI873101S05 110±15gf 0.3±0.2mm SMT 500,000Cycles PDF
