Product Details
| P/N | CMI873101S01 | |
| Rating | DC30V 0.1A | |
| Cotact resistance | 100mΩMax | |
| Insulation resistance | 100MΩMin DC500V | |
| withstanding voltage | AC500V(50-60HZ)for1Minute | |
| tactile force | / | |
| operation force | 60±15gf | |
| actuation travel | 0.3±0.2mm | |
| Totoal travel | 0.45mm以上 | |
| Mechanical life | 500，000Cycles | |
| Operating temperature | -20℃--70℃ | |
| Weather resistance | ||
| low temperature resistance | -20℃±2℃ | 96H |
| heat resistance | 70℃±2℃ | 96H |
| temperature tolerance | 60℃±2℃ | 90~95%RH 96H |

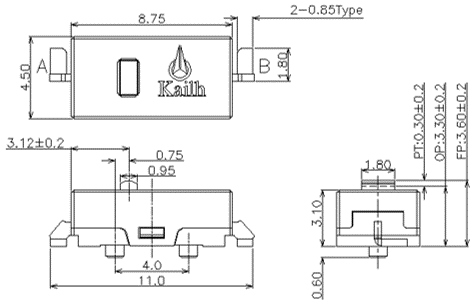

Outline View
Circuit
| Package | ||
| Quantity(PCS) | 1bag | 1000PCS |
| 1CTN | 20000PCS | |
| Wave peak automatic welding condition | ||
| Item | preheat temperature | 100±5℃ |
| preheating time | 60S(max.) | |
| welding temperature | 260±5℃ | |
| welding time | 5±1S | |
| Manual welding condition | ||
| welding temperature | 350℃±10℃ | |
| welding time | 3S±0.5S | |
| Soldering iron power | 60W(max.) | |
| Attention： |
| 1.the product color in the catalogue is differ from the material object |
| 2.Please use the thickness 1.6mm PCB |
| 3.Please order with the n (integer) times of the MOQ |
| 4.Please check with me when you use it in auto |
| 96H |
Product overview
| P/N | Picture | Force range | Travel | DIP/SMT | Life | Remarks | |
| CMI873101D01-5 |  |
60±10gf | 0.3±0.2mm | 3,000，000Cycles |  |
||
| CMI873101D01 |  |
60±15gf | 0.3±0.2mm | 3,000，000 Cycles | |
||
| CMI873101S01-1 | |
50-60gf | 0.3±0.2mm | 500，000Cycles | |
||
| CMI873101S01 | |
60±15gf | 0.3±0.2mm | 500，000Cycles | |
||
| CMI873101D01-3 |  |
60±10gf | 0.3±0.2mm | DIP | 3,000，000Cycles | |
|
| CMI873101S05 | |
110±15gf | 0.3±0.2mm | SMT | 500，000Cycles | |
