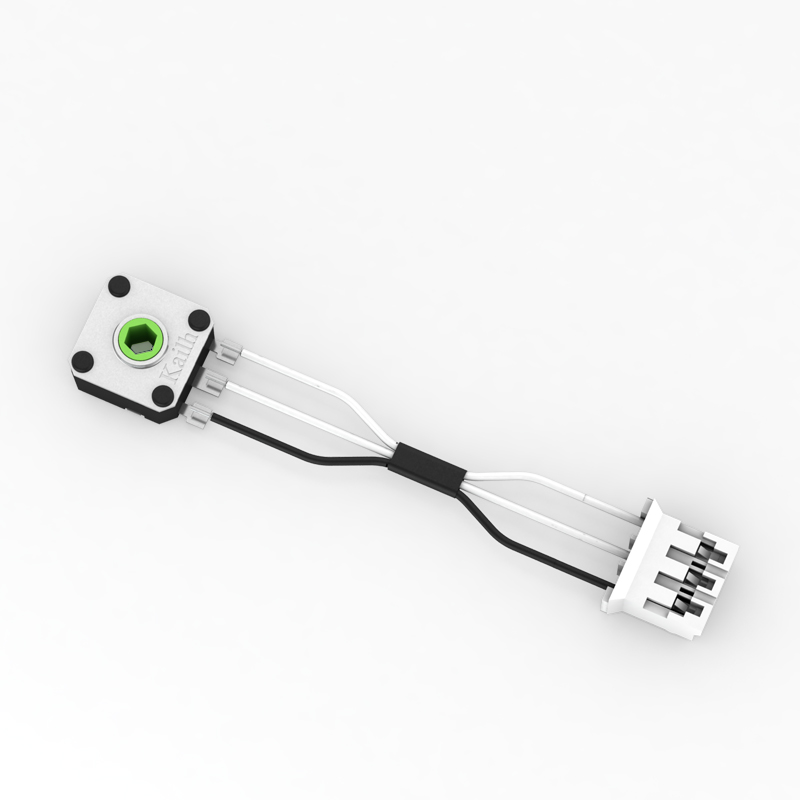

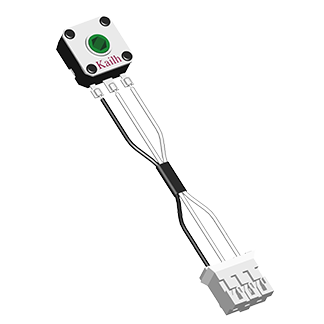

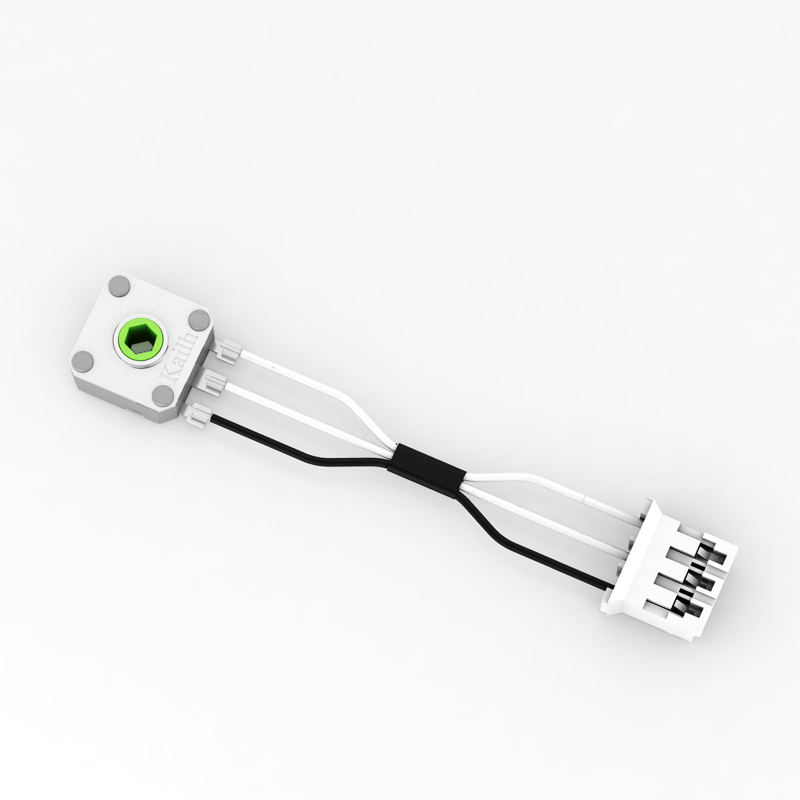

EN8080 series

Varrious cover lock design,Different housing connection and different length line welding are available.it can meet the structure design requirements


This product can be used in many fields. Please explain the application fields when the client inquires about the product, so that our sales can provide more detailed product specification information.

EN8080 series series
Product code Picture Cable length Pin Disrtance Torque force Hole diameter Life PDF Remarks
CEN808012W39 CEN808012W39 40.00mm 2.50mm 15-30gf.cm 2.00mm 200,000 Cycles PDF
CEN808012W50 CEN808012W50 30.00mm 2.50mm 20-32gf.cm 2.00mm 800,000 Cycles PDF
CEN808012W47 CEN808012W47 30.00mm 1.25mm 14-26gf.cm 2.00mm 500,000 Cycles PDF
CEN808012W42 CEN808012W42 30.00mm 2.50mm 5-15gf.cm 2.00mm 200,000 Cycles PDF
CEN808012W01 CEN808012W01 40.00mm 2.00mm 10-25gf.cm - 200,000 Cycles PDF ;
CEN808012W29 CEN808012W29 40.00mm 2.00mm 15-30gf.cm - 300,000 Cycles PDF
CEN808012W23 CEN808012W23 40.00mm 2.00mm 10-25gf.cm - 200,000 Cycles PDF ;
CEN808012W41 CEN808012W41 30.00mm 2.50mm 10-25gf.cm 2.00mm 300,000Cycles PDF ;
CEN808012W02 CEN808012W02 none - 10-25gf.cm - 200,000 Cycles PDF
