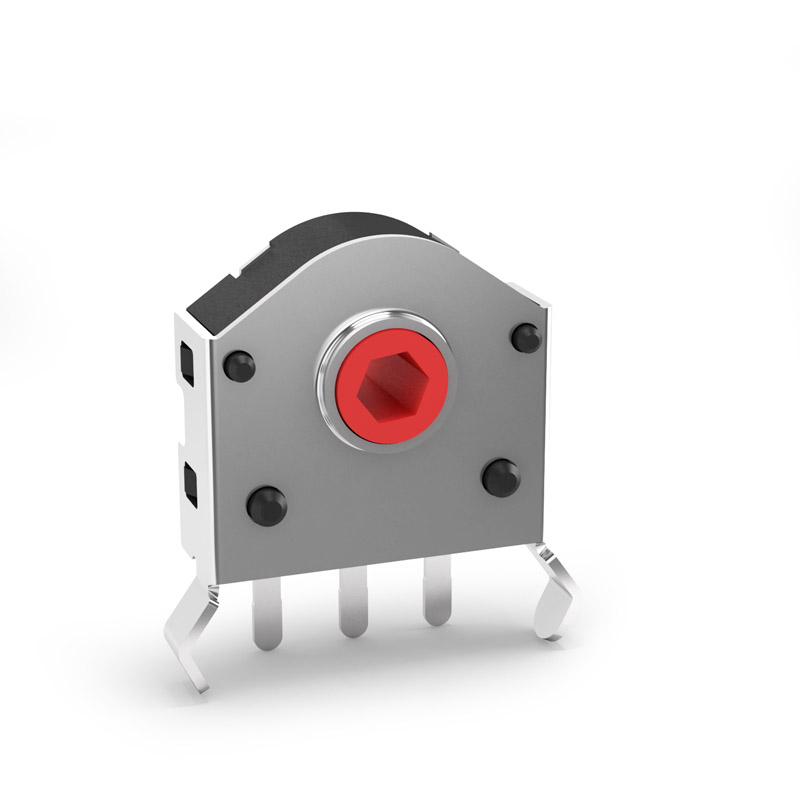

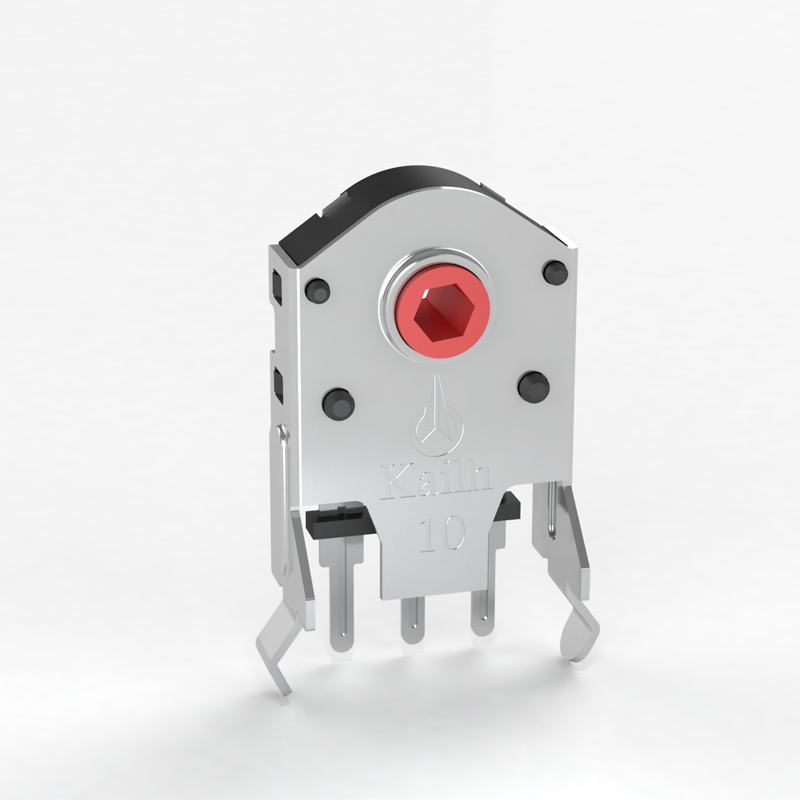

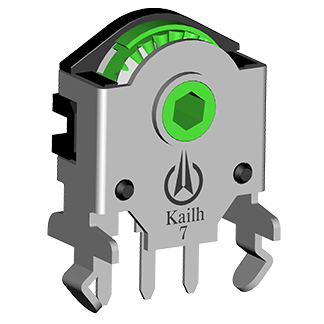

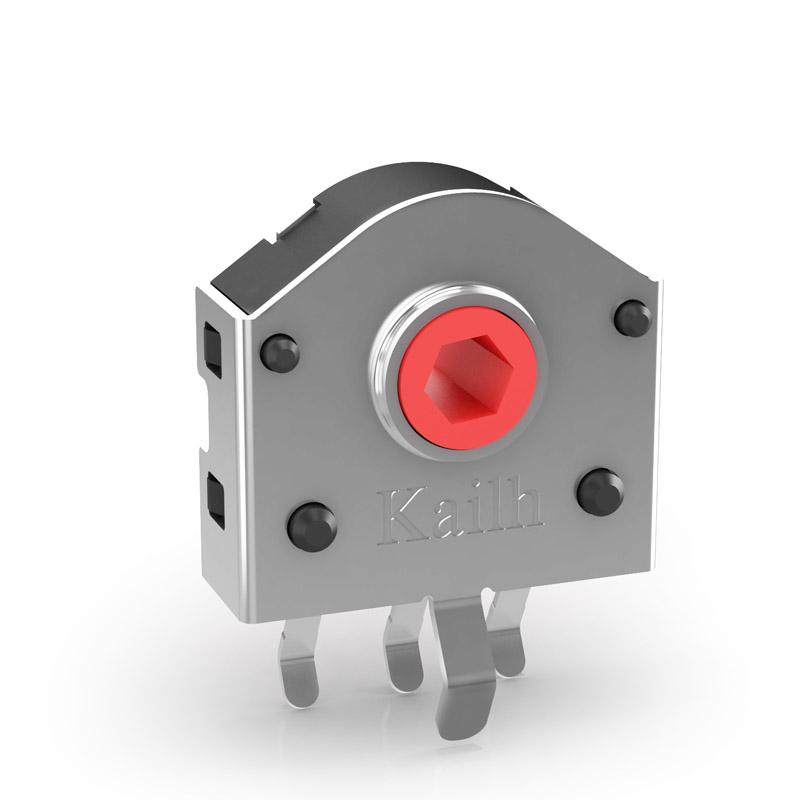

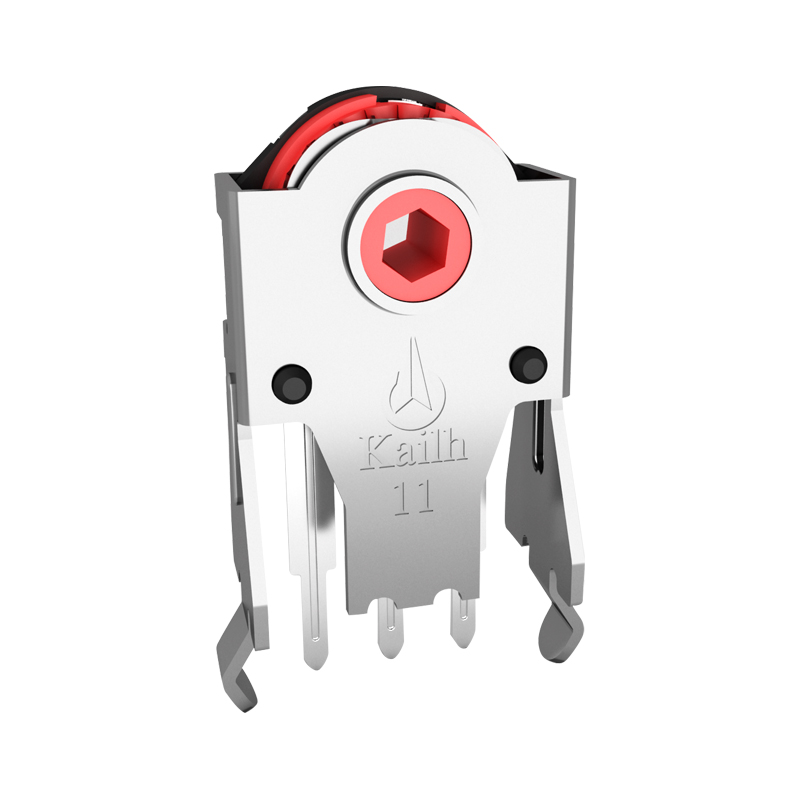

EN97 series

It is dust and dirt free to adopt the sealing type design.Mechanical encodet has super long life-1,000,000 cycle times.


This product can be used in many fields. Please explain the application fields when the client inquires about the product, so that our sales can provide more detailed product specification information.

EN97 series series
Product code Picture Axis height Torque Aperture Life PDF Remarks
CEN971112R12-2 CEN971112R12-2 11.0mm 10-25gf.cm 1.74mm 300,000Cycles PDF rotary:grey
CEN971412R01 CEN971412R01 14.0mm 15-30gf.cm 1.67mm 300,000 Cycles PDF
CEN971012R32 CEN971112R02-2 11.0mm 10-25gf.cm 1.74mm 300,000 Cycles PDF -
CEN971412R04 CEN971412R04 14.0mm 15-30gf.cm 1.76mm 300,000 Cycles PDF
CEN975012R07 CEN975012R07 5.0mm 14-26gf.cm 1.74mm 300,000Cycles PDF
CEN971012R07 CEN971012R07 10.0mm 15-30gf.cm 1.74mm 200,000 Cycles PDF -
CEN979012R31 CEN979012R31 9.0mm 20-40gf.cm 1.76mm 300,000 Cycles PDF
CEN971112R04-2 CEN971112R04-2 11.0mm 10-25gf.cm 1.76mm 300,000 Cycles PDF rotary:grey
CEN975512R13 CEN975512R13 5.5mm 15-30gf.cm 1.74mm 300,000 Cycles PDF
CEN975112R02 CEN975112R02 5.1mm 15-30gf.cm 1.74mm 300,000 Cycles PDF -
CEN971112R03-2 CEN971112R03-2 11.0mm 10-25gf.cm 1.69mm 300,000 Cycles PDF rotary:blue
