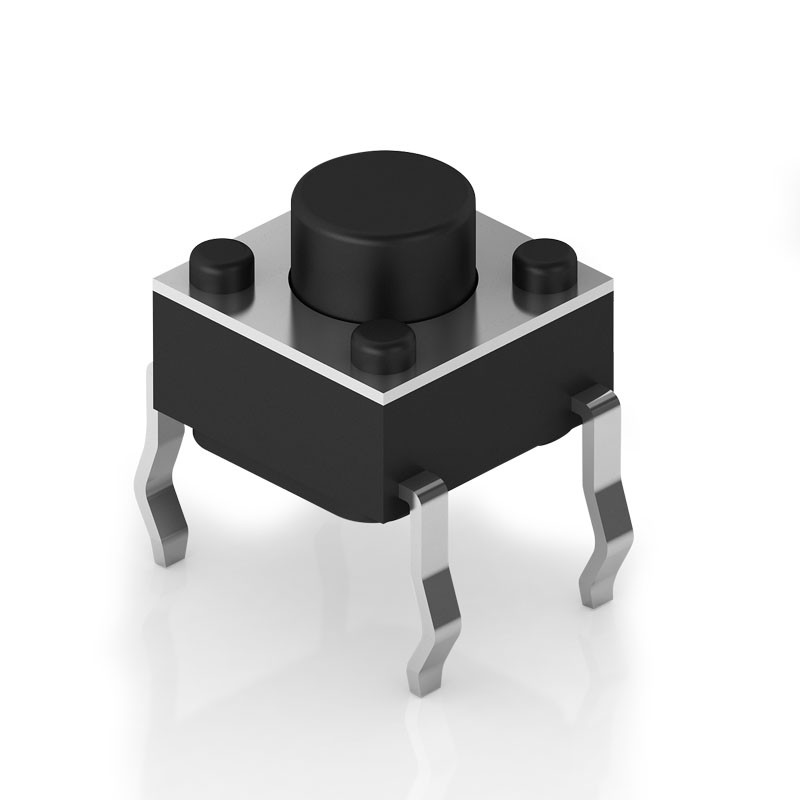

6x6 tact switch

MicroMiniature,light operating.It has good feeling and long lift.


This product can be used in many fields. Please explain the application fields when the client inquires about the product, so that our sales can provide more detailed product specification information.

6x6 tact switch series
P/N Picture Outline size Type Force Travel PIN PDF Remarks
CTA603201S67 CTA603201S67 6.0*6.0*5.0 SMT 70±20gf 0.20±0.1mm - PDF
CTA603201D61 CTA603201D61 6.0*6.0*4.3 DIP 100±30gf 0.25±0.1mm - PDF
CTA603201D30 CTA603201D30 6.0*6.0*4.3 DIP 160±50gf 0.25±0.10mm - PDF
CTA603201D02 CTA603201D02 6.0*6.0*5.0 DIP 250±50gf 0.25±0.1mm - PDF
CTA603201D15 CTA603201D15 6.0*6.0*4.3 DIP 160±50gf 0.25±0.10mm 4 PIN PDF

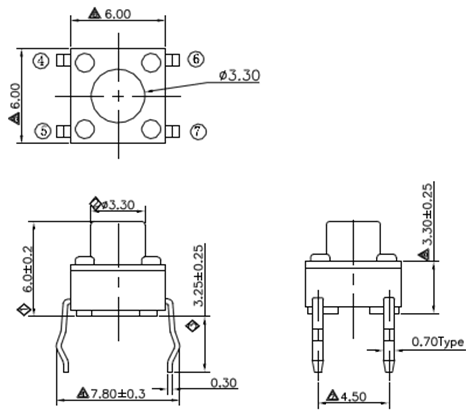

CTA603201D11 CTA603201D11 1P11Q620552b DIP 160±50gf 0.25±0.10mm 4 PIN PDF
CTA603201D04 CTA603201D04 6.0*6.0*4.3 DIP 160±50gf 0.25±0.10mm 4 PIN PDF
CTA603201D03 CTA603201D03 6.0*6.0*4.3 DIP 160±50gf 160±50gf 4 PIN PDF
CTA603201D01 CTA603201D01 6.0*6.0*4.3 momentary 250±50gf 0.25±0.10mm 4 PDF
